Remove/Install Upper Trim Strip On Window Frame Of Front Door - AR72.10-P-1712S

Model 223

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove lower trim strip on window frame of front door.		AR72.10-P-1713S

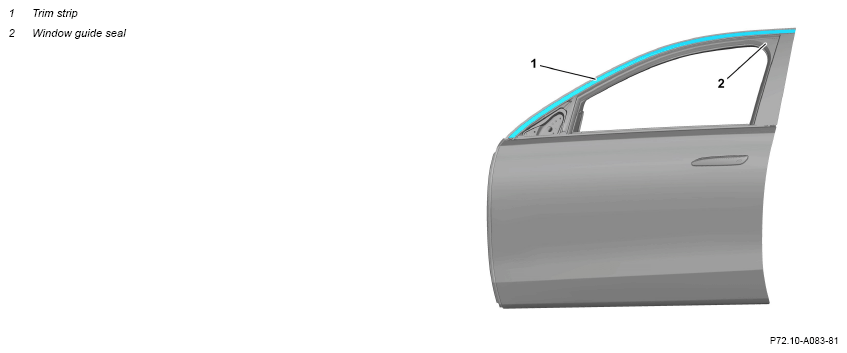

2	Unclip trim strip (1) from window guide seal (2).	Carefully unclip trim strip (1) lengthwise. Otherwise, the trim strip (1) will be bent.
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
		Long wedge	Fig 1
3	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
