Remove/Install Rear Door Window Frame Lining - AR72.12-P-0008SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | |
| Remove | |||
| 1 | Remove corresponding rear door trim. | AR72.12-P-1011S | |

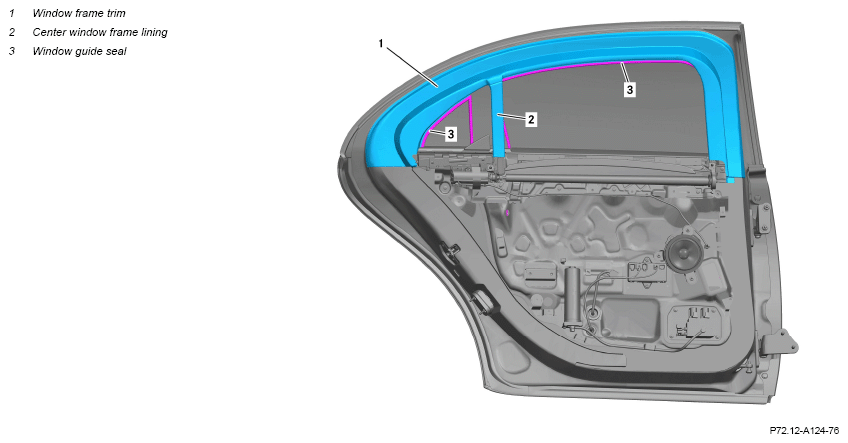

| 2 | Detach center window frame lining (2) and window frame lining (1) from rear door and remove. | ||
| Fig 1 | |||
| 3 | Remove adhesive residues from rear door and clean bonding surface. | ||
| Install | |||
| 4 | Extend protective films of adhesive strips of new window frame lining (1) and new center window frame lining (2), place outward and fasten. | ||
| 5 | Position window frame lining (1) and insert in sealing frame. | Ensure window guide seal (3) is routed correctly. Otherwise, the window guide seal (3) may be damaged. |
|
| 6 | Pull off extended protective films of adhesive strips and press on window frame lining (1). | ||
| 7 | Position center window frame lining (2). | Ensure window guide seal (3) is routed correctly. Otherwise, the window guide seal (3) may be damaged. |
|
| 8 | Pull off extended protective films of adhesive strips and press on center window frame lining (2). | ||
| 9 | Install corresponding rear door, door trim. | AR72.12-P-1011S |
