Remove/Install Rear Door Lock Trim - AR72.12-P-1023SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove corresponding rear door trim.		AR72.12-P-1011S

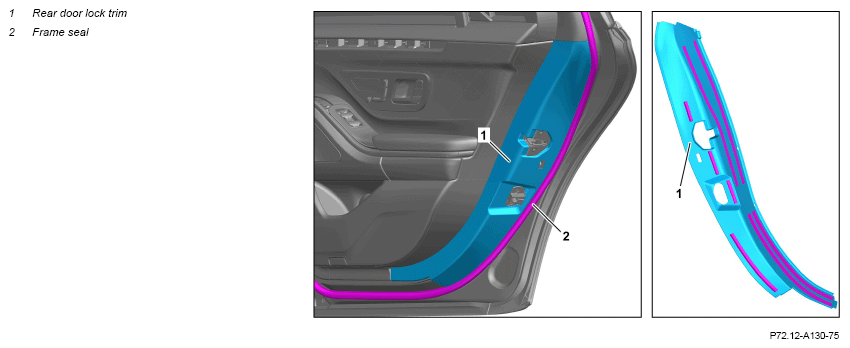

2	Release rear door lock trim (1) from rear door and remove.	Rear door lock trim (1) is attached to rear door with double-sided tape.
		Long wedge	Fig 1
3	Remove adhesive residue at rear door and clean bonding surface.
	Install
4	Extend protective films of adhesive strips of new rear door lock trim (1), position to outside and attach.
5	Position rear door lock trim (1) and insert in sealing frame (2).
6	Pull off extended protective films of adhesive strips and press on rear door lock trim (1).
7	Install corresponding rear door trim.		AR72.12-P-1011S

Fig 1: Identifying Long Wedge (115 589 03 59 00)
