Remove/Install Armrest On Rear Door - AR72.12-P-1020S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

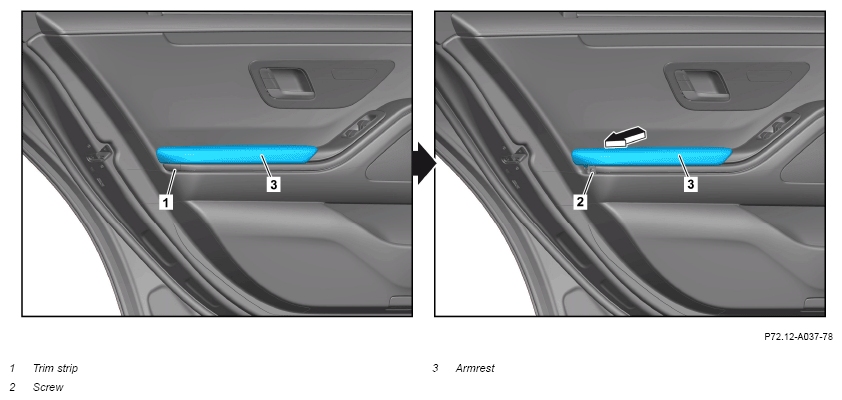

	Remove/install
1	Unclip trim strip (1).	Long wedge	Fig 1
2	Remove screw (2).
3	Remove armrest (3) at an incline towards rear (arrow).
4	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
