Remove/Install Front Door Lock Trim - AR72.10-P-6574SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove corresponding front door trim.		AR72.10-P-6575S

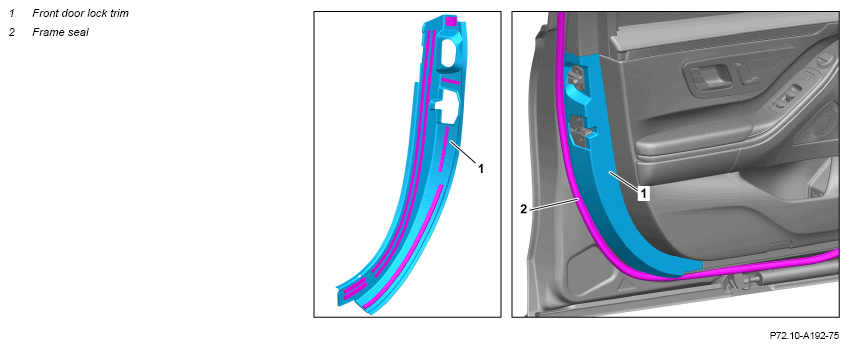

2	Release front door lock trim (1) from front door and remove.	Front door lock trim (1) is attached with double-sided tape.
		Long wedge	Fig 1
3	Remove adhesive residue at front door and clean bonding surface.
	Install
4	Extend protective films of adhesive strips of new front door lock trim (1), position to outside and attach.
5	Position front door lock trim (1) and insert in sealing frame (2).
6	Pull off extended protective films of adhesive strips and press on front door lock trim (1).
7	Install corresponding front door trim.		AR72.10-P-6575S

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
