Remove/Install Armrest Trim Strips - AR72.10-P-0019S

Model 223

Courtesy of MERCEDES-BENZ USA

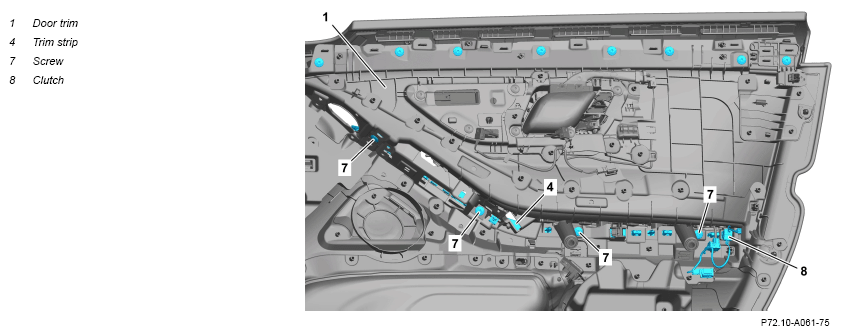

Shown on driver's side door trim (1)

Shown with code 891 (Premium ambient lighting)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove door trim (1).		AR72.10-P-6575S
2	Remove rotary light switch.	Where trim strip (4) at driver's side is removed.	AR54.25-P-3250S
3	Disconnect electrical connector at button group for power window and outside mirror adjustment, driver's side door (S20/1).
4	Unscrew screws (5) and unclip switch pod (2).	Long wedge	Fig 1
5	Unscrew screws (6) and unclip trim strip (3).	Long wedge	Fig 1
6	Remove coupling (8) at light-guiding element.	Model 223 with code 891 (Premium ambiance illumination)
		Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) Commercially available devices/tools  Cutter	AR82.20-P-0003-01S
7	Unscrew screws (7) and unclip trim strip (4).	Long wedge	Fig 1
8	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
