Remove/Install Front Stowage Compartment On Front Center Console - AR68.20-P-0900S
Model 223
| Remove/install | |||
| 1 | Remove trim element of front center console. | AR68.20-P-2101S | |

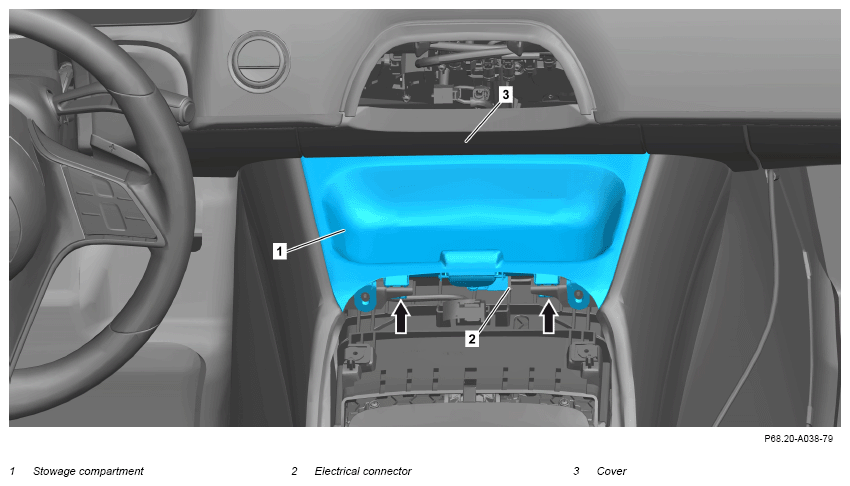

| 2 | Unclip cover (3) towards rear and remove. | ||
| 3 | Unclip rear stowage compartment (1) upwards (arrows). | ||
| 4 | Release and disconnect electrical connector (2). | ||
| 5 | Remove stowage compartment (1). | ||
| 6 | Install in the reverse order. |
