Remove/Install Rear Center Section Cover - AR68.30-P-4786S

Model 223

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install

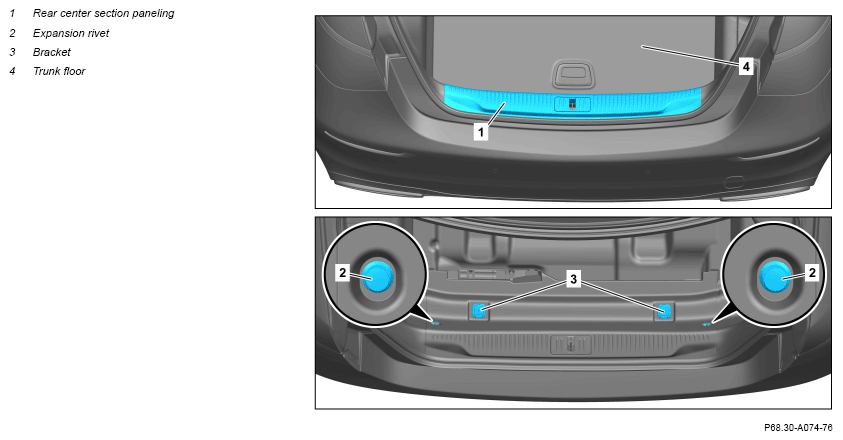

1	Open trunk lid.
2	Lift trunk floor (4).	Model 223 except code ME10 (Hybrid vehicle (plug-in, PHEV))
3	Remove expansion rivets (2).	Model 223 except code ME10 (Hybrid vehicle (plug-in, PHEV))
		Dismantling tool	Fig 1
4	Release holders (3) with a suitable tool and unclip with the special tool.	Dismantling tool	Fig 1
5	Unclip rear-end center section cover (1) and remove upward.	Long wedge	Fig 2
6	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
