Remove/Install Center Stowage Compartment - AR68.10-P-1620S
Model 223

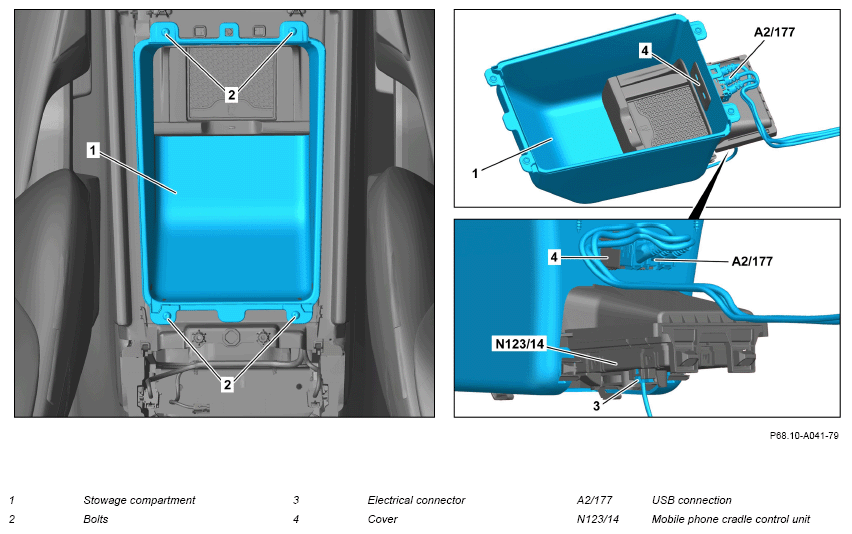

Shown on vehicle with code 72B (USB package) and with code 899 (Front wireless telephone charging and antenna) and except code 582 (Air conditioning system in rear)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove armrest cap from center console. | AR68.20-P-2370S | |
| 2 | Remove screws (2). | ||
| 3.1 | Remove stowage compartment (1) in upward direction until electrical connector (3) and/or USB port (A2/177) is accessible. | Model 223 with code 72B (USB package) Model 223 with code 899 (Front wireless telephone charging and antenna) |
|
| 3.2 | Remove stowage compartment (1). | Model 223 except code 72B (USB package) except code 899 (Front wireless telephone charging and antenna) |
|
| 4 | Carefully unclip USB port (A2/177) from cover (4) and remove. | Model 223 with code 72B (USB package) |
|
| 5 | Release and disconnect electrical connector (3) at mobile phone cradle control unit (N123/14). | Model 223 with code 899 (Front wireless telephone charging and antenna) |
|
| 6 | Remove stowage compartment (1). | Model 223 with code 72B (USB package) Model 223 with code 899 (Front wireless telephone charging and antenna) |
|
| 7 | Install in the reverse order. |
