Remove/Install Complete Sideview Mirror - AR88.70-P-9000SGA
Model 223
with code Z07 (B7 armoring on special protection version)

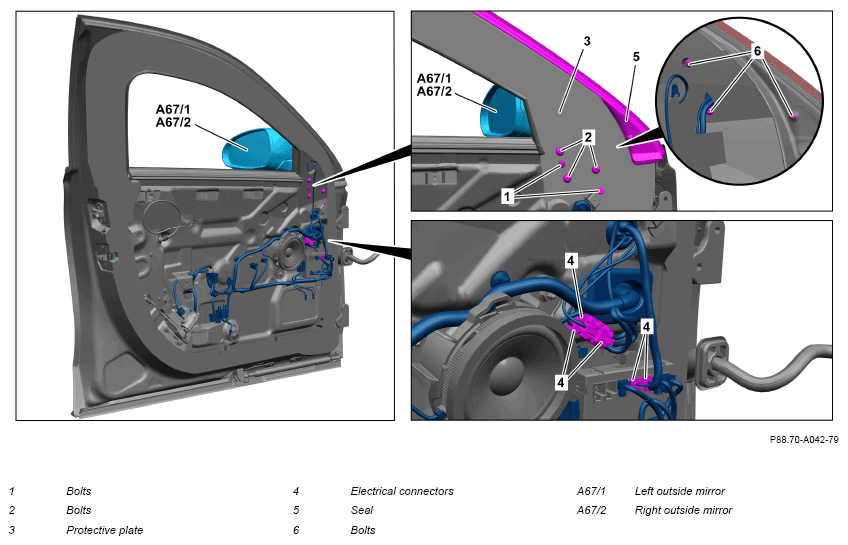

Shown on left front door
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door trim of corresponding front door. | AR72.10-P-6575S | |
| 2 | Remove speaker at mirror triangle of front door. | AR82.62-P-7850SG | |
| 3 | Remove screws (1). | *BA72.10-P-1009-01BA | |
| 4 | Unscrew screws (2) and remove protective plate (3). | *BA72.10-P-1017-01BA | |
| 5 | Release and disconnect electrical connectors (4). | ||
| 6 | Loosen seal (5) until screw below it (6) is accessible. | ||
| 7 | Remove screws (6). | ||
| 8 | Remove sideview mirror (A67/1, A67/2) from front door and pull out electrical wiring harnesses. | ||
| 9 | Install in the reverse order. | ||
| Calibrate | |||
| 10 | Calibrate all the cameras in the 360° camera system using the diagnostic system. | Model 223 with code 501 (360° camera) with code Z07 (B7 armoring on special protection version) |
|
| AD00.00-P-2000-06FR |
FRONT DOOR
| Number | Designation | Model 223 with code Z07 | |
|---|---|---|---|
| BA72.10-P-1009-01BA | Screw, door module to guard plate | Nm | 8 |
FRONT DOOR
| Number | Designation | Model 223 with code Z07 | ||
|---|---|---|---|---|
| BA72.10-P-1017-01BA | Screw, protective plate to front door | M8 | Nm | 28 |
