Remove/Install Speaker Cover On Rear Door - AR72.12-P-1042S

Model 223

Shown with code 811 (High-end sound system)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear door trim.		AR72.12-P-1011S

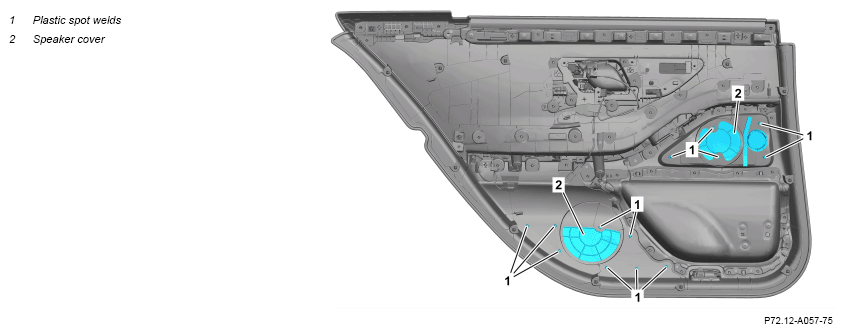

2.1	Drill plastic spot welds (1).	If speaker cover (2) is fastened with plastic spot welds (1).
		Replace drilled plastic spot welds (1) by screws.	AR72.00-P-0001-01LW
2.2	Unscrew screws at speaker cover (2).	If speaker cover (2) is fastened with screws.
3	Remove speaker cover (2).
4	Install in the reverse order.
