Remove/Install Speaker Cover - AR72.10-P-1032S

Model 223

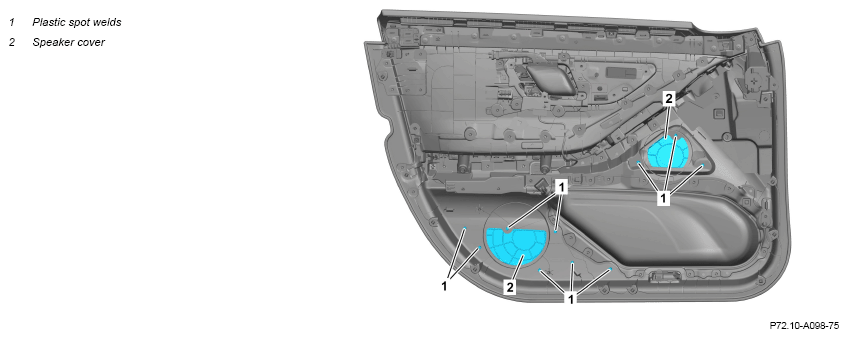

Shown with code 811 (High-end sound system)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front door trim.		AR72.10-P-6575S
2.1	Drill plastic spot welds (1).	If speaker cover (2) is fastened with plastic spot welds (1).
		Replace drilled plastic spot welds (1) by screws.	AR72.00-P-0001-01LW
2.2	Unscrew screws at speaker cover (2).	If speaker cover (2) is fastened with screws.
3	Remove speaker cover (2).
4	Install in the reverse order.
