Remove/Install Seal For Door Holder - AR72.12-P-2525S
Model 223
except code Z07 (B7 armoring on special protection version)

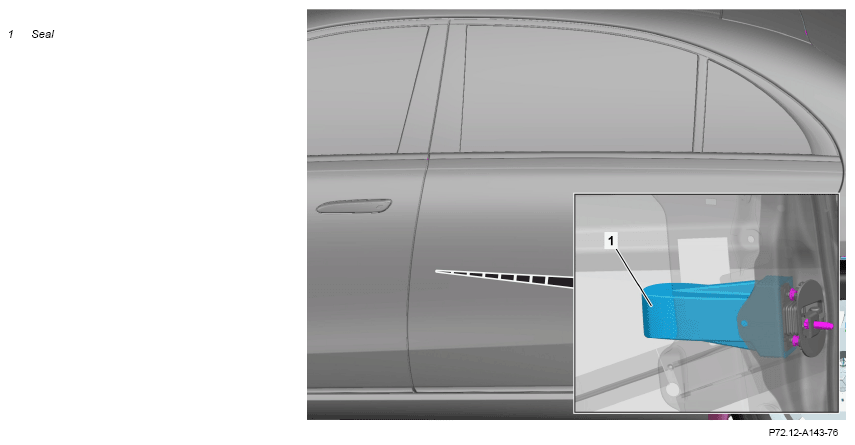

Shown on left rear door
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove door module of corresponding rear door. | AR72.12-P-0103S | |
| 2 | Remove seal (1) of door holder. | ||
| 3 | Install in the reverse order. |
