Remove/Install Rear Door - AR72.12-P-0600S

Model 223

except code Z07 (B7 armoring on special protection version)

Shown on left rear door

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Open front door.
2	Open side window of rear door completely (7).
3	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
4	Disconnect rear door electrical connector (X35/3x1, X35/4x1).

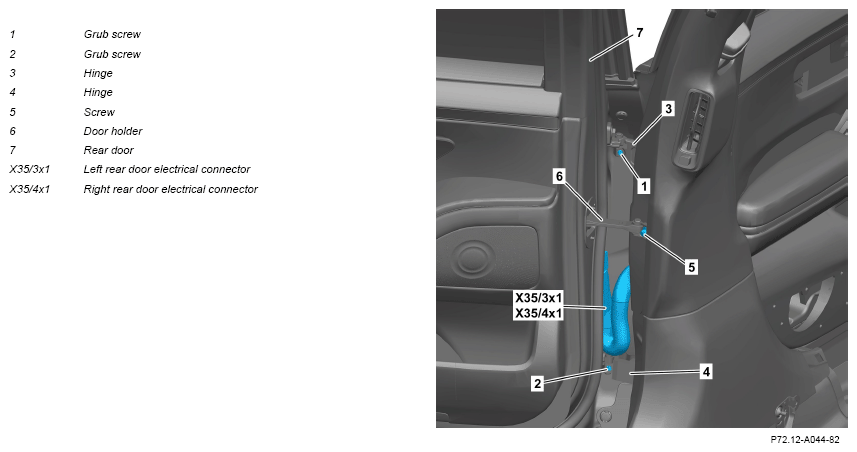

5	Remove cover caps of grub screws (1, 2).
6	Unscrew grub screws (1, 2) by three revolutions.	Repair paint damage in area of grub screws (1, 2).
		Model 223 except code Z07 (B7 armoring on special protection version) Grub screw for hinge separation	*BA72.12-P-1015-01U
7	Unscrew screw (5) of door holder (6).	Model 223 except code Z07 (B7 armoring on special protection version) Bolt, door holder to B-pillar	*BA72.12-P-1016-01U
8	Remove rear door (7) from lower hinge leaves and set down on a suitable base.	Handle rear door (7) with care. Otherwise paint damage can occur.
		Aid of helper required.
9	Install in the reverse order.
	Check
10	Check gap dimensions of rear door (7) and adjust.		AR72.12-P-0650S
11	Normalize window lifter of rear door (7).
