Remove/Install Rear Door Damper - AR72.12-P-2200SG

Model 223

with code Z07 (B7 armoring on special protection version)

except code Z39 (Opening and closing assistance, rear doors)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from fingers being pinched or jammed when working on gas struts under pressure	Only remove and install pneumatic springs when they are not under tension and when the components are properly secured.	AS00.00-Z-0012-01A
	Remove/install
1.1	Remove right and/or left rear door module.	Model 223 with code Z07 (B7 armoring on special protection version) except code Z13 (Left rear power window with special protection) except code Z14 (Right rear power window with special protection) except code Z39 (Opening and closing assistance, rear doors)
			AR72.12-P-0103SGA
1.2	Remove right and/or left rear door window lifter.	Model 223 with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) except code Z39 (Opening and closing assistance, rear doors) Model 223 with code Z07 (B7 armoring on special protection version) with code Z14 (Right rear power window with special protection) except code Z39 (Opening and closing assistance, rear doors)
			AR67.39-P-0012SG

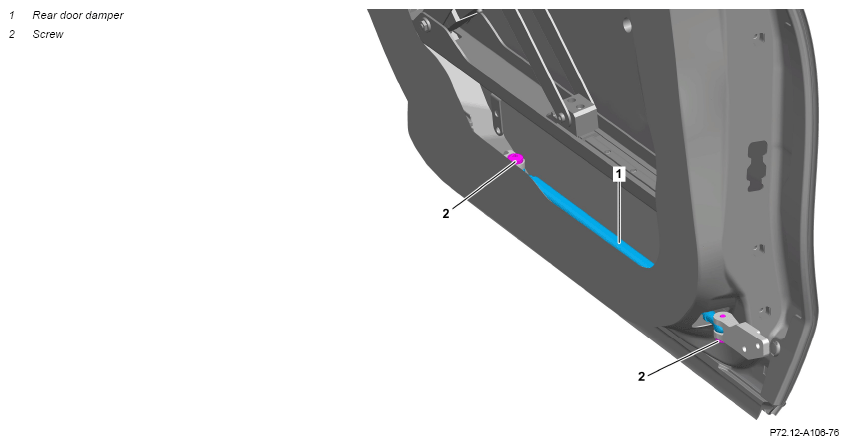

2	Remove screws (2).	Screw, door holder or actuator to mounting supports	*BA72.12-P-1020-01U
3	Remove rear door damper (1).
4	Install in the reverse order.
