Remove/Install Lower Hinge Of Rear Door - AR72.12-P-2663SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove rear door.		AR72.12-P-0600SG

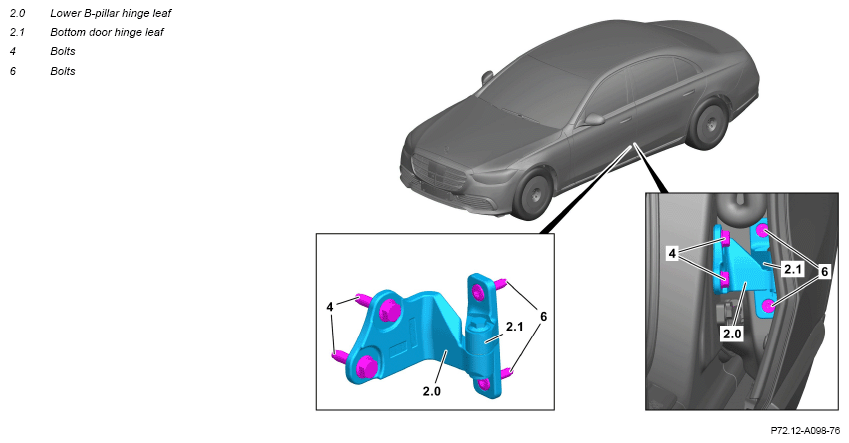

2	Mark installation position of lower B-pillar hinge leaf (2.0) and lower door hinge leaf (2.1).
3	Unscrew screws (4) and remove lower B-pillar hinge leaf (2.0).	Position lower B-pillar hinge leaf (2.0) at applied marking.
		Screw/bolt/nut, hinge to body	*BA72.12-P-1014-01U
4	Unscrew screws (6) and remove lower door hinge leaf (2.1).	Position lower door hinge leaf (2.1) at applied marking.
		Bolt, hinge on door	*BA72.12-P-1013-01U
5	Install in the reverse order.
