Remove/Install Front Door Window Frame Lining - AR72.10-P-0021SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | |
| Remove | |||
| 1 | Remove corresponding front door trim. | AR72.10-P-6575S | |
| 2 | Release window frame lining (1) from front door and remove. | ||

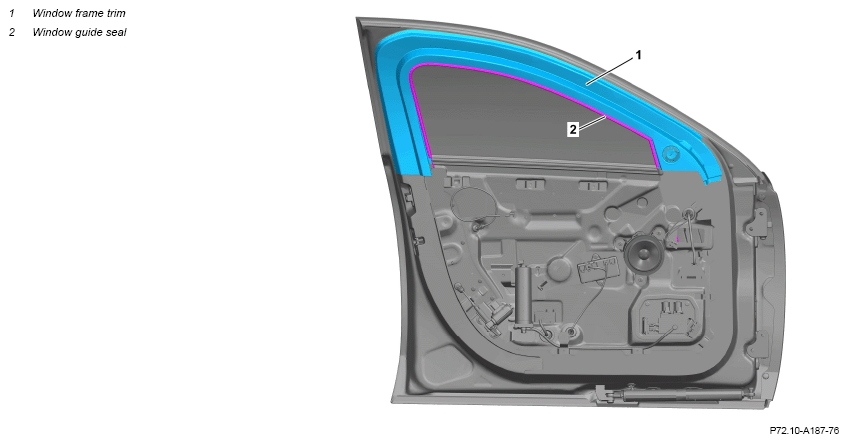

| Fig 1 | |||
| 3 | Remove adhesive residue at front door and clean bonding surface. | ||
| Install | |||
| 4 | Extend protective films of adhesive strips of new window frame lining (1), position to outside and attach. | ||
| 5 | Position window frame lining (1) and insert in sealing frame. | Ensure window guide seal (2) is correctly installed. Window guide seal (2) can otherwise be damaged. |
|
| 6 | Remove extended protective films of adhesive strips and press on window frame lining (1). | ||
| 7 | Install corresponding front door trim. | AR72.10-P-6575S |
