Remove/Install Front Door Window Frame Lining - AR72.10-P-0021S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Shown with code 811 (High-end sound system)

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front door trim.		AR72.10-P-6575S
2	Disconnect electrical connectors of tweeter.	Number of electrical connectors can vary depending on equipment installed.
3	Disconnect electrical connector at light-emitting diode.

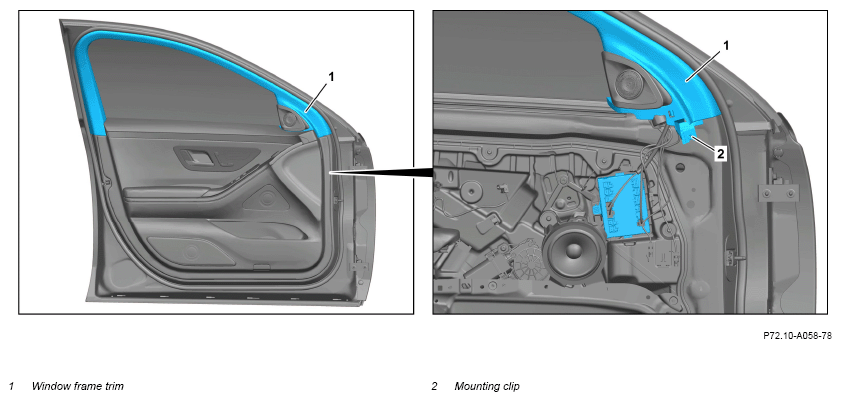

4	Unclip window frame lining (1) and remove.	Long wedge	Fig 1
	Check
5	Check retaining clip (2) of window frame lining (1) for damage.	If there is a problem: ↓ Replace retaining clip (2).
6	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
