Remove/Install Front Door Power Closing Actuator Motor - AR72.30-P-0002SG

Model 223

with code Z07 (B7 armoring on special protection version)

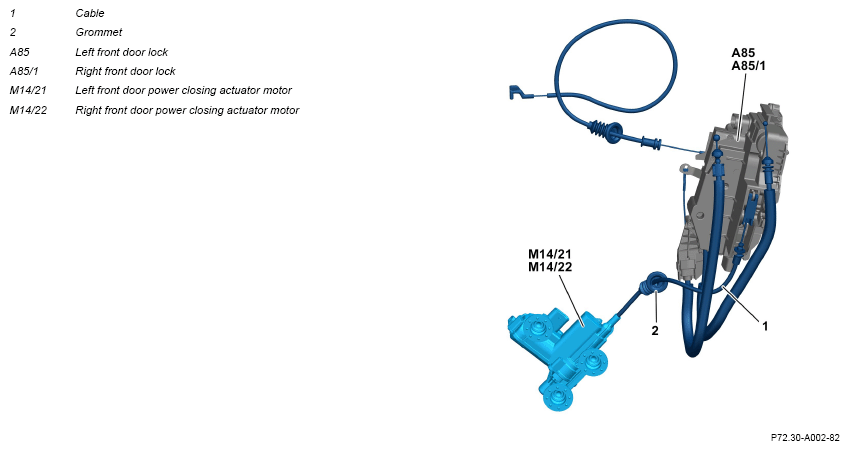

G16192191Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove corresponding front door lock (A85, A85/1).   AR72.10-P-4011SGA
2 Thread out cable (1) with grommet (2) of power closing actuator motor (M14/21, M14/22) at front door.
3 Remove power closing actuator motor (M14/21, M14/22).
4 Install in the reverse order.
