Remove/Install Front Door Inner Actuation - AR72.10-P-1400S
Model 223
MODIFICATION NOTES
| 19.10.2020 | Operation steps added. | Operation steps 3 and 12 | |
| 19.10.2020 | AR82.20-P-0003-01S added. | Operation step 2 and 13 |

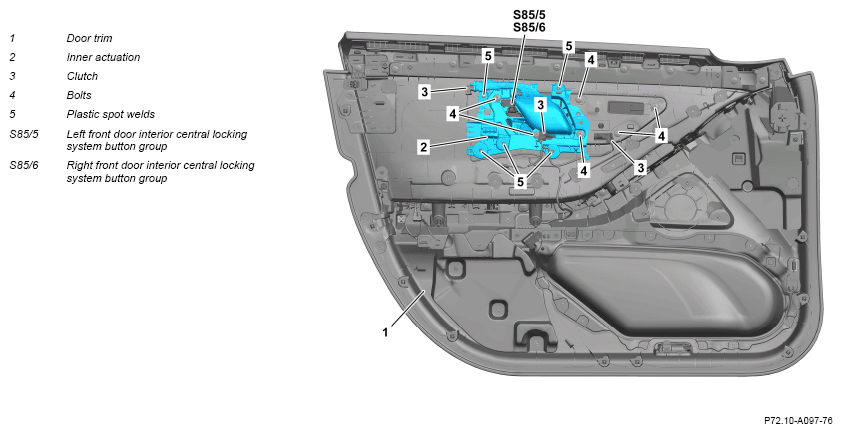

Shown with code 891 (Premium ambient lighting) at right front door
| Remove | |||
| 1 | Remove door trim (1). | AR72.10-P-6575S | |
| 2 | Remove couplings (3) from light-guiding elements. | Model 223 with code 891 (Premium ambiance illumination) |
|
| Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) |
AR82.20-P-0003-01S | ||
up to model year 2021 with code 891 (Premium ambiance illumination) Commercially available devices/tools Cutter |
|||
| 3 | Release and disconnect electrical connector at front door interior central locking system button group (S85/5, S85/6). | ||
| 4 | Remove bolts (4). | ||
| 5 | Remove front door interior central locking system button group (S85/5, S85/6). | ||
| 6.1 | Drill out plastic spot welds (5). | If inside door handle (2) is attached with plastic spot welds. | |
| AR72.00-P-0001-01LW | |||
| 6.2 | Remove screws. | If the inside door handle (2) is fastened with screws. | |
| 7 | Remove inside door handle (2). | ||
| Install | |||
| 8 | Position inside door handle (2). | ||
| 9 | Screw in new screws. | ||
| 10 | Position front door interior central locking system button group (S85/5, S85/6). | ||
| 11 | Screw in screws/bolts (4). | ||
| 12 | Connect electrical connector to front door interior central locking system button group (S85/5, S85/6). | ||
| 13 | Attach couplings (3) to light-guiding elements. | Model 223 with code 891 (Premium ambiance illumination) |
|
| Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) |
AR82.20-P-0003-01S | ||
| 14 | Install door trim (1). | AR72.10-P-6575S |
