Remove/Install Front Door Control Unit - AR72.29-P-1001S
Model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of front door control unit (N69/1, N69/2). | Only when replacing front door control unit (N69/1, N69/2). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove door trim. | AR72.10-P-6575S | |

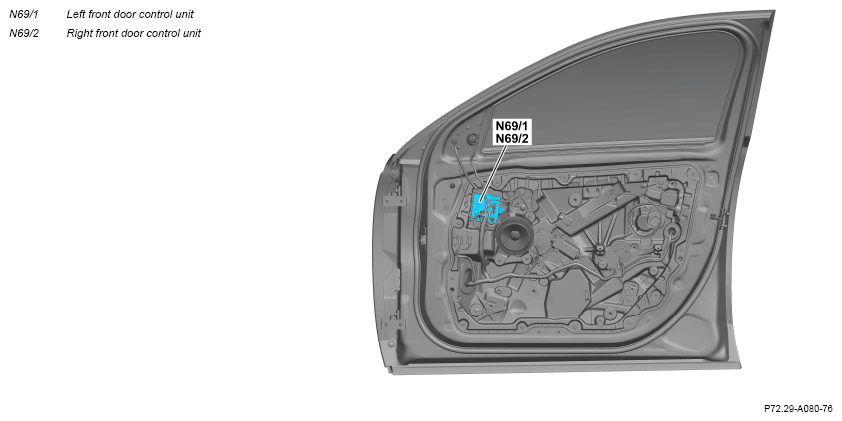

| 4 | Disconnect electrical connectors at front door control unit (N69/1, N69/2). | ||
| 5 | Unclip and remove front door control unit (N69/1, N69/2). | ||
| 6 | Install in the reverse order. |
