Remove/Install Front Door Armrest - AR72.10-P-1035SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Remove/install

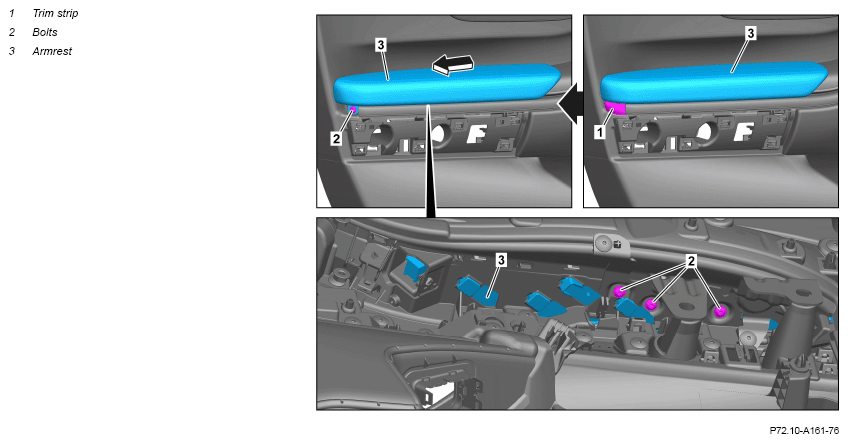

1	Unclip trim strip (1).	Long wedge	Fig 1
2	Remove door trim from front door.		AR72.10-P-6575S
3	Remove screws (2).
4	Remove armrest (3) at an incline towards rear (arrow).
5	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
