Remove/Install Door Stowage Compartment - AR72.10-P-0007S

Model 223

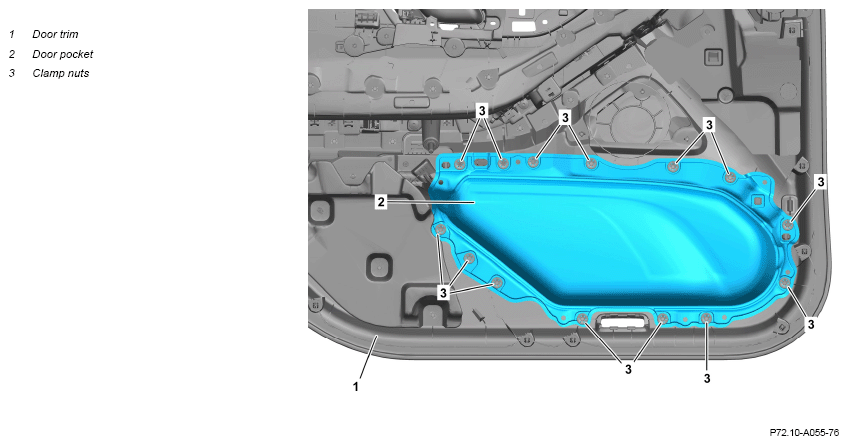

Shown on left front door

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove door trim (1).		AR72.10-P-6575S
		The door trim (1) must be replaced if the door stowage compartment (2) has not yet been replaced.
2	Remove clamp nuts (3) and remove door stowage compartment (2).	If door stowage compartment (2) has been replaced before.
	Install
3	Clip new door stowage compartment (2) into door trim (1).
4	Install clamp nuts (3).	The clamp nuts (3) are part of the repair kit.
5	Install door trim (1).		AR72.10-P-6575S
