Remove/Install Door Interior Actuating Mechanism On Rear Side Door - AR72.12-P-2310S
Model 223
MODIFICATION NOTES
| 19.10.2020 | Operation steps added. | Operation steps 2 and 13 | |
| 19.10.2020 | AR82.20-P-0003-01S added. | Operation step 3 and 12 |

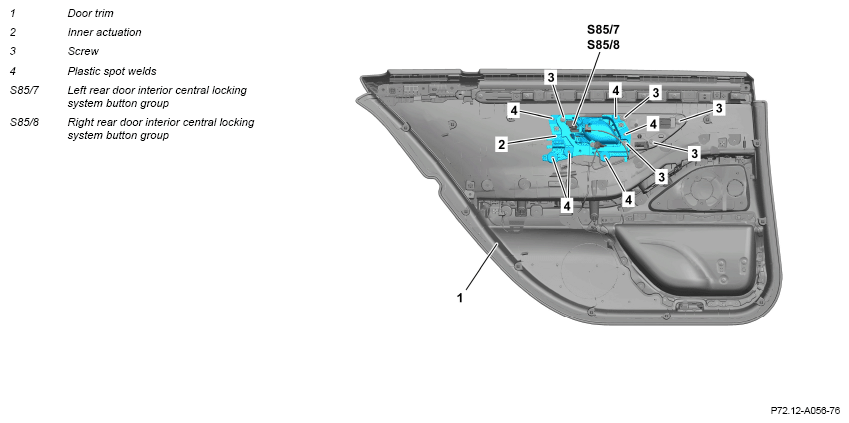

Shown with code 891 (Premium ambient lighting)
| Remove | |||
| 1 | Remove door trim (1). | AR72.12-P-1011S | |
| 2 | Release and disconnect electrical connector at rear door interior central locking system button group (S85/7, S85/8). | ||
| 3 | Remove couplings from light-guiding elements. | Model 223 with code 891 (Premium ambiance illumination) |
|
| Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) |
AR82.20-P-0003-01S | ||
up to model year 2021 with code 891 (Premium ambiance illumination) |
|||
| Commercially available devices/tools Cutter |
|||
| 4 | Remove screws (3). | ||
| 5 | Remove rear door interior central locking system button group (S85/7, S85/8). | ||
| 6.1 | Drill plastic spot welds (4). | If inside door handle (2) is attached with plastic spot welds (4). | |
| AR72.00-P-0001-01LW | |||
| 6.2 | Remove screws. | If the inside door handle (2) is fastened with screws. | |
| 7 | Remove inside door handle (2). | ||
| Install | |||
| 8 | Position inside door handle (2). | ||
| 9 | Screw in new screws. | ||
| 10 | Position rear door interior central locking system button group (S85/7, S85/8). | ||
| 11 | Screw in screws (3). | ||
| 12 | Attach couplings to light-guiding elements. | Model 223 with code 891 (Premium ambiance illumination) |
|
| Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) |
AR82.20-P-0003-01S | ||
| 13 | Connect the contacts of electrical connector at rear door interior central locking system button group (S85/7, S85/8). |
||
| 14 | Install door trim (1). | AR72.12-P-1011S |
