Remove/Install Armrest Trim Strips - AR72.12-P-1716S
Model 223
except code Z07 (B7 armoring on special protection version)
Shown with code 891 (Premium ambient lighting) at left rear door
Shown on left rear door except 297 (Electric roller sunblind in left and right rear door), except 413 (Panoramic sliding sunroof/glass sunroof) and except 540 (Electric roller blind for rear-end window)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

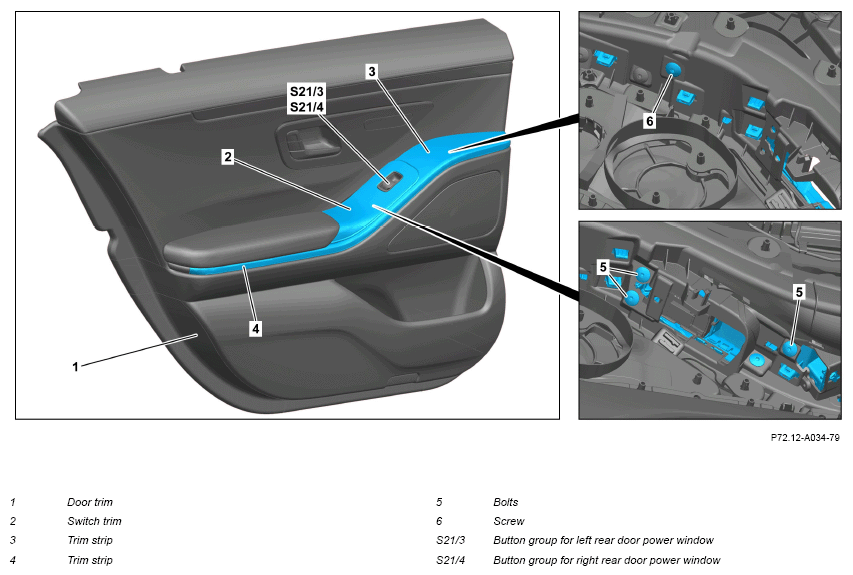

| 1 | Remove door trim (1). | AR72.12-P-1011S | |
| 2 | Disconnect electrical connector at button group for rear door power window (S21/3, S21/4). | ||
| 3 | Remove screws (5). | ||
| 4 | Remove switch pod (2). | Fig 1 | |
| 5 | Unscrew screw (6). | ||
| 6 | Remove trim strip (3). | Fig 1 | |
| 7 | Remove coupling (8) from light-guiding element. | Model 223 with code 891 (Premium ambiance illumination) except code Z07 (B7 armoring on special protection version) |
|
| Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) except code Z07 (B7 armoring on special protection version) |
AR82.20-P-0003-01S | ||
up to model year 2021 with code 891 (Premium ambiance illumination) except code Z07 (B7 armoring on special protection version) |
|||
| Commercially available devices/tools Cutter |
|||

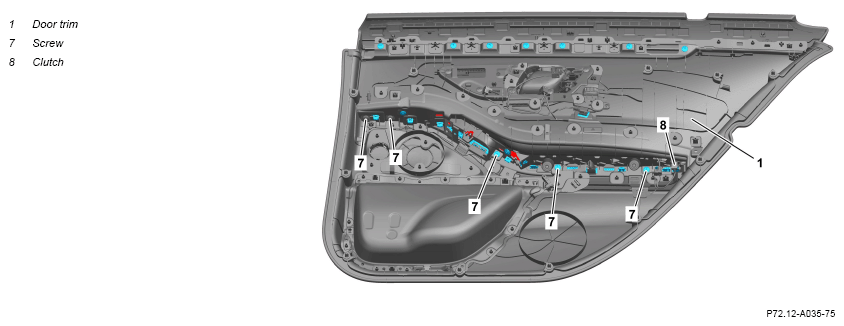

| 8 | Unscrew screws (7) and remove trim strip (4). | Fig 1 | |
| 9 | Install in the reverse order. |
