Disassemble/Assemble Rear Door - AR72.12-P-2101SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Remove/install | |||
| 1 | Remove door lock of corresponding rear door (1). | AR72.12-P-2511SG | |
| 2 | Remove outside door handle. | AR72.12-P-2410SA | |
| 3.1 | Remove door damper. | Model 223 with code Z07 (B7 armoring on special protection version) except code Z39 (Opening and closing assistance, rear doors) |
|
| AR72.12-P-2200SG | |||
| 3.2 | Remove drive unit for electric rear door (1). | Model 223 with code Z07 (B7 armoring on special protection version) with code Z39 (Opening and closing assistance, rear doors) |
|
| AR72.29-P-0006SG | |||
| 4 | Remove wedge-type stop on door side. | AR72.12-P-0030SG | |
| 5 | Remove sealing frame of rear door (1). | AR72.12-P-0002SG | |
| 6 | Remove door wiring harness (2) from rear door (1). | ||

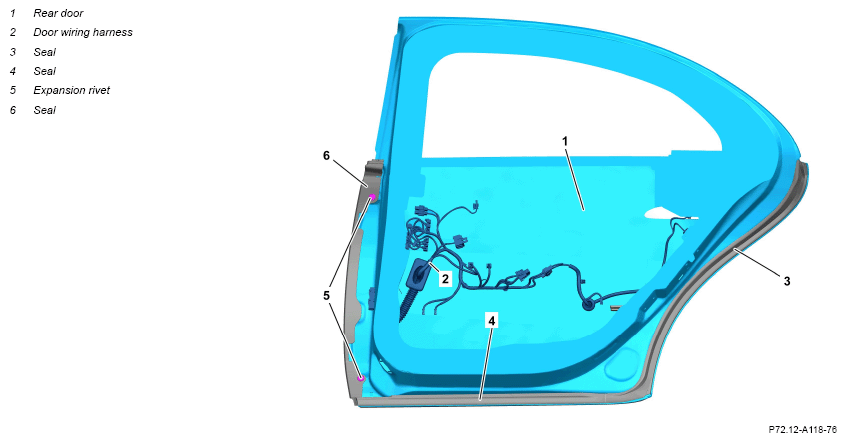

| 7 | Unclip sealing (3) and remove. | Fig 1 | |
| 8 | Remove hinge leaves on door side. | AR72.12-P-2663SG | |
| AR72.12-P-2662SG | |||
| 9 | Unclip sealing (4), extend out of rear door (1) toward rear, and remove. | Fig 1 | |
| 10 | Unclip expansion rivets (5) and remove sealing (6). | Fig 1 | |

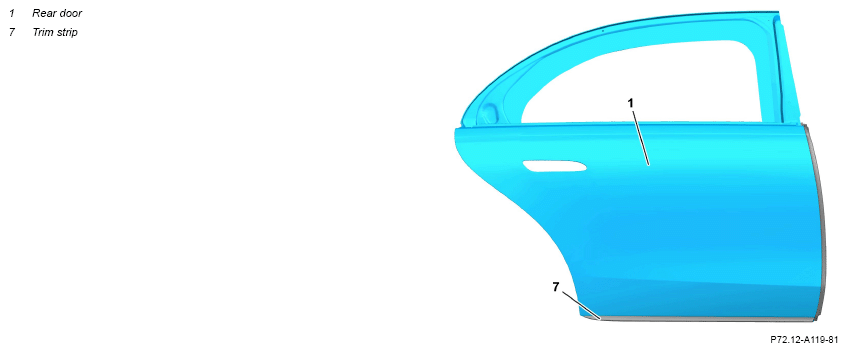

| 11 | Remove trim strip (7) from rear door (1). | ||
| Fig 2 | |||
| 12 | Clean bonding surface in area of trim strip (7) on rear door (1). | Bonding surface must be free of dirt, oil, and dust residue. Trim strip (7) may otherwise work loose on rear door (1). |
|
| 13 | Install in the reverse order. |
