Remove/Install Upper Hinge Of Rear Door - AR72.12-P-2662SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove front door.		AR72.10-P-0500SG
2	Remove trim at B-pillar.		AR68.30-P-4700SG

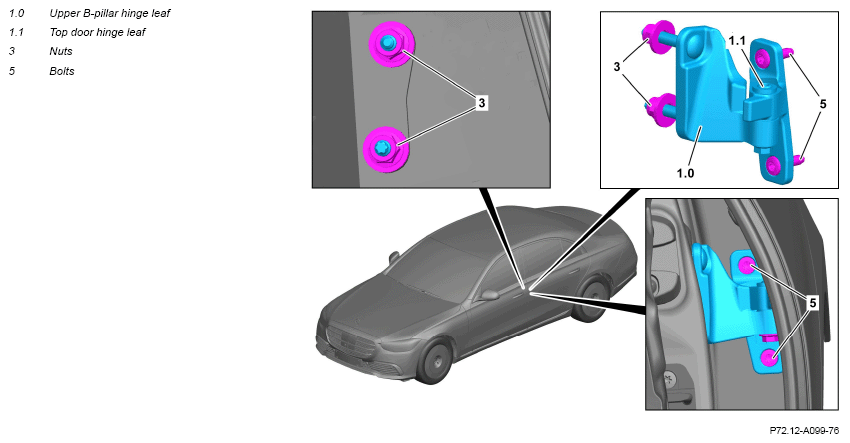

3	Mark installation position of upper B-pillar hinge leaf (1.0) and upper door hinge leaf (1.1).
4	Remove nuts (3) and remove upper B-pillar hinge leaf (1.0).	Position upper B-pillar hinge leaf (1.0) at applied marking.
		Screw/bolt/nut, hinge to body	*BA72.12-P-1014-01U
5	Remove screws (5) and remove upper door hinge leaf (1.1).	Position upper door hinge leaf (1.1) on the applied marking.
		Bolt, hinge on door	*BA72.12-P-1013-01U
6	Install in the reverse order.
