Trunk Lid/Liftgate Control Drive Unit, Basic Function - GF80.45-P-2001A
Model All (CAR) with code 881 (Remote boot-lid closing)
Model All (CAR) with code 890 (Automatic rear-end door)

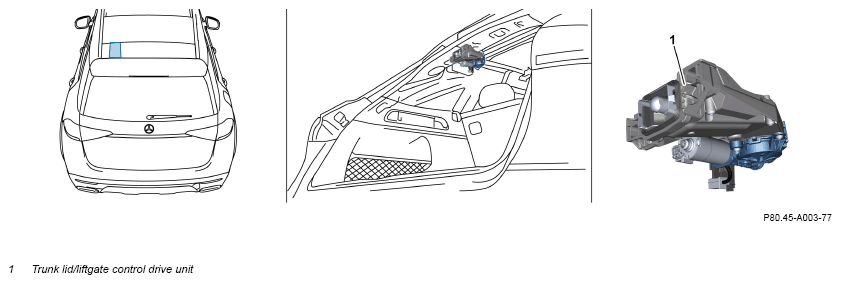

Sample diagram of trunk lid/tailgate control drive unit in vehicles with remote trunk closing
Location
The trunk lid/tailgate control drive unit (1) is located on the left in the trunk between the hinge bracket and the fender.

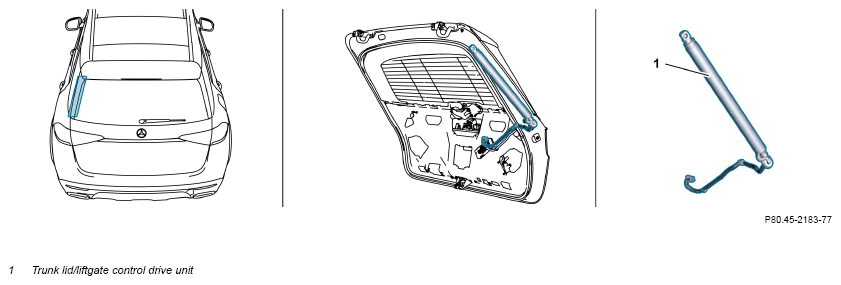

Sample diagram of trunk lid/tailgate control drive unit in vehicles with EASY-PACK tailgate and rotary pillar drive

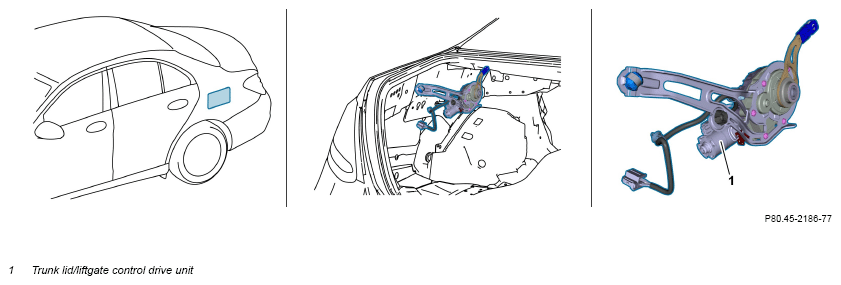

Sample diagram of trunk lid/tailgate control drive unit in vehicles with EASY-PACK tailgate and gear motor
Overview
This document contains information on:
- General
- Function
General
Depending on the design version, the trunk lid/tailgate control drive unit (1) is either installed in the area of the D-pillar on the roof frame or instead of one of the two pneumatic springs.
For vehicles with a large and thus comparatively heavy liftgate, two liftgate control drive units are installed instead of the pneumatic springs.
Special design considerations can also lead to two liftgate control drive units being required instead of the pneumatic springs.
Function
The trunk lid/tailgate control drive unit (1) moves the trunk lid or tailgate.
The following component parts are integrated in the trunk lid/tailgate control drive unit (1):
- Trunk lid/liftgate control Hall sensor (position monitoring)
- Trunk lid/liftgate control electric motor (drive)
The trunk lid/tailgate control drive unit (1) is actuated by the trunk lid/tailgate control unit.
| Component descriptions | |||
| Trunk lid/liftgate control drive unit, component description | Model 223 | GF80.20-P-6088A | |
| Model 243 | GF80.20-P-6088B | ||
| Model 206 | GF80.20-P-6088C | ||
| Model 295 | GF80.20-P-6088E | ||
| Model 232 | GF80.20-P-6088F | ||
| Model 296 | GF80.20-P-6088G | ||
| Model 214 | GF80.20-P-6088K | ||
| Model 118 as of model year 2023, model 247 as of model year 2022 | GF80.20-P-6088L | ||
| Model 294 | GF80.20-P-6088N | ||
| Model 192 | GF80.20-P-6088R |
