Trunk Lid/Liftgate Control Drive Unit, Component Description - GF80.20-P-6088A

Model 223

with code 881 (Remote boot-lid closing)

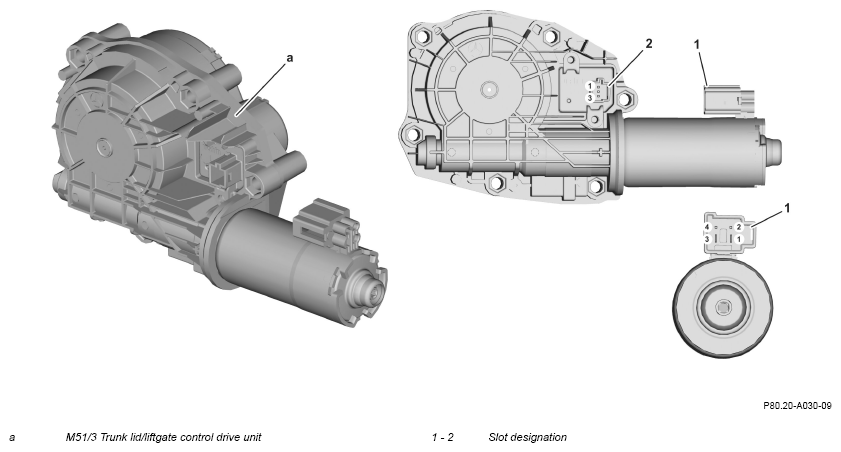

G16232085Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

Fig 1: Trunk Lid/Liftgate Control Drive Unit Components Location - Model 223 With Code 881

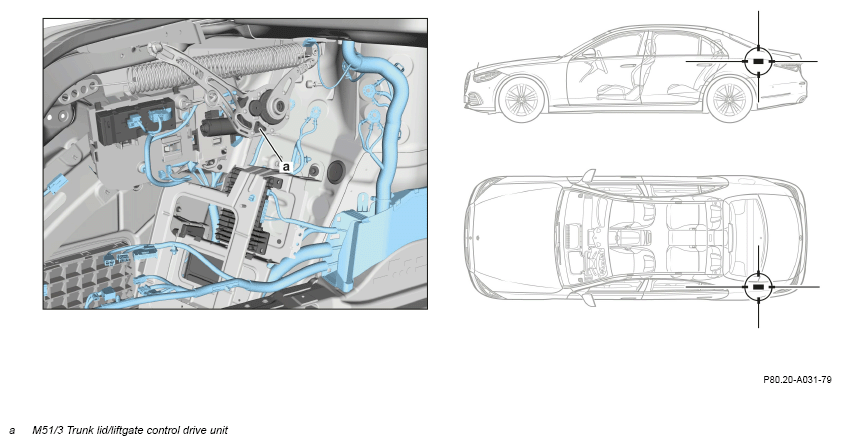

G16232086Courtesy of MERCEDES-BENZ USA

Location
