Fuel Filler Cap Central Locking System Actuator, Basic Function - GF80.20-P-2015A

Model All (CAR)

Overview

This document contains information on:

• General
• Function

Courtesy of MERCEDES-BENZ USA

Example illustration

General

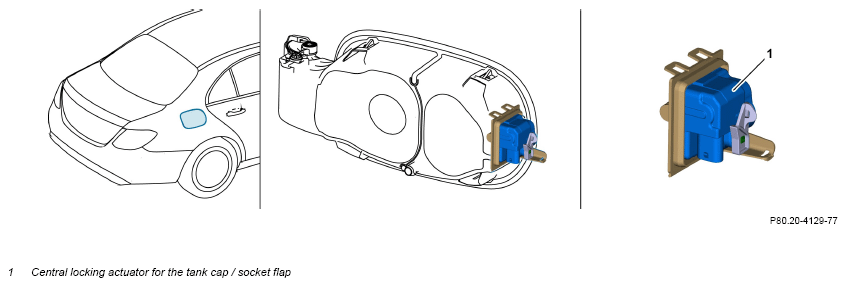

The fuel filler cap/socket flap central locking system actuator (1) is located on the tank filler or socket recess on the lock side of the fuel filler flap or socket flap.

Function

The following components are installed in the fuel filler cap/socket flap central locking system actuator (1):

• Microswitch
• Actuator motor
• Catch bolt

The fuel filler cap/socket flap central locking system actuator (1) has the following tasks:

• Detection of the opening request via the status of the microswitch when the tank or socket flap is pressed.
• Releasing and locking the fuel filler flap or socket flap by actuating the actuator motor.

	Component descriptions
	Tank cap central locking actuator, component description	Model 223	GF80.20-P-4143A
		Model 206	GF80.20-P-4143C
		Model 232	GF80.20-P-4143F
		Model 254	GF80.20-P-4143H
		Model 214	GF80.20-P-4143K
		Model 118, 177, 247 as of model year 2023	GF80.20-P-4143L
		Model 167 as of model year 2023	GF80.20-P-4143M
