Tank Cap Central Locking Actuator, Component Description - GF80.20-P-4143A

Model 223

G16232072Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

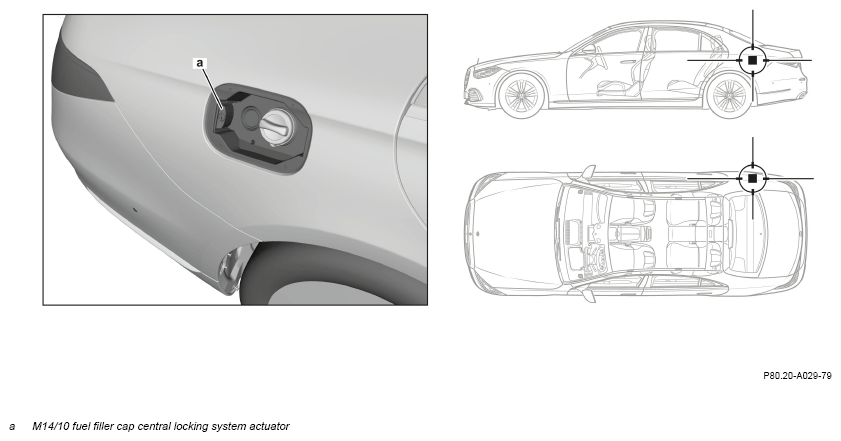

Fig 1: Fuel Filler Cap Central Locking System Actuator Components Location - Model 223
G16232073Courtesy of MERCEDES-BENZ USA
