Remove/Install Windshield Washer System Pump - AR82.35-P-6002S
Model 223
Shown with code (874) MAGIC VISION CONTROL, heated
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove left front wheel. | AR40.10-P-1102A | |
| 2 | Remove rear section of left fender liner. | Model 223 Model 223.0/1 |
AR88.10-P-1301S |

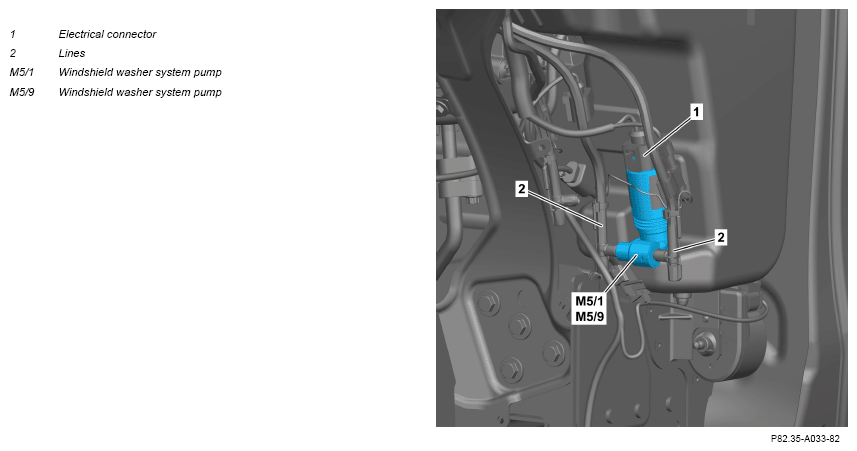

| 3 | Disconnect electrical connector (1) from windshield washer system pump (M5/1, M5/9). | ||
| 4 | Detach lines (2) from windshield washer system pump (M5/1, M5/9). | ||
| 5 | Remove windshield washer system pump (M5/1, M5/9). | ||
| Check | |||
| 6 | Check seal of windshield washer system pump (M5/1, M5/9). | If there is a problem, ↓ |
|
| Install new gasket. | |||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check/correct fluid level of windshield washer system. | ||
| AP82.35-P-8210I | |||
| 9 | Perform function check of the windshield washer system. | ||
| AP82.35-P-8252J |
