Remove/Install Subwoofer - AR82.62-P-7841S

Model 223

with code 811 (High-End sound system)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove trim in the left side of the luggage compartment.	Model 223 with code 811 (High-End sound system) except code Z07 (B7 armoring on special protection version)	AR68.30-P-4800S

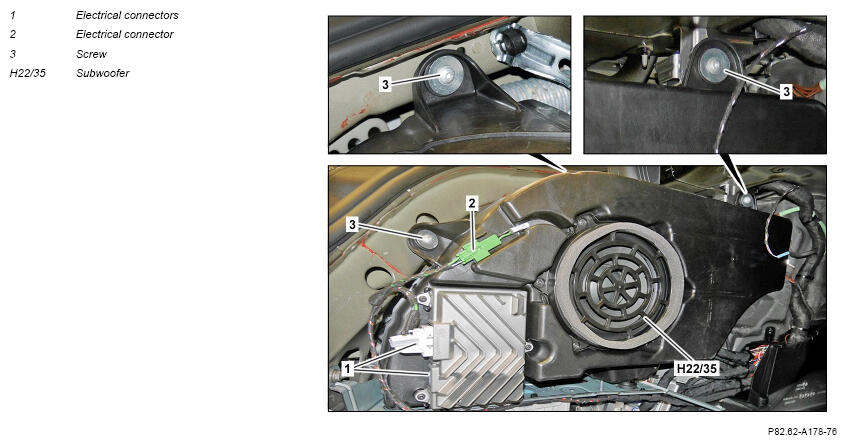

3	Release and disconnect electrical connections (1).
4	Release and disconnect electrical connector (2) of subwoofer (H22/35).
5	Remove screw/bolts (3).

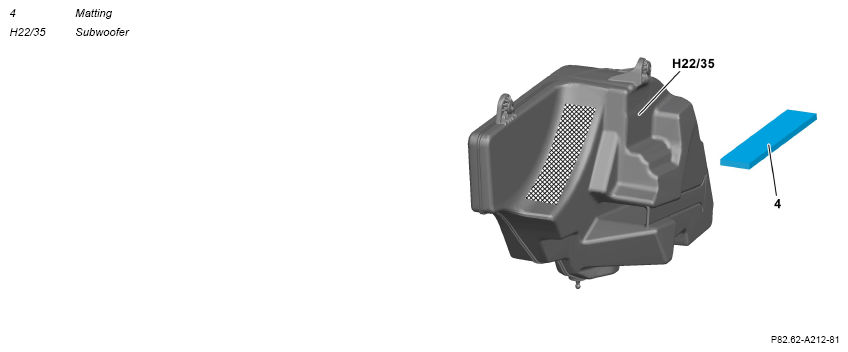

6	Remove subwoofer (H22/35).	When replacing the subwoofer (H22/35), an additional matting (4) must be glued on (hatched area). The matting (4) must also be ordered in the XENTRY Portal parts information.
7	Install in the reverse order.
