Remove/Install Special Vehicle Multifunction Control Unit (MSS) - AR82.25-P-1207SG
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z90 (Multifunctional control unit for special functions)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission the multifunction control unit (N26/14). | When replacing the multifunction control unit (N26/14). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove side trim in trunk at right. | AR68.30-P-4800SG | |

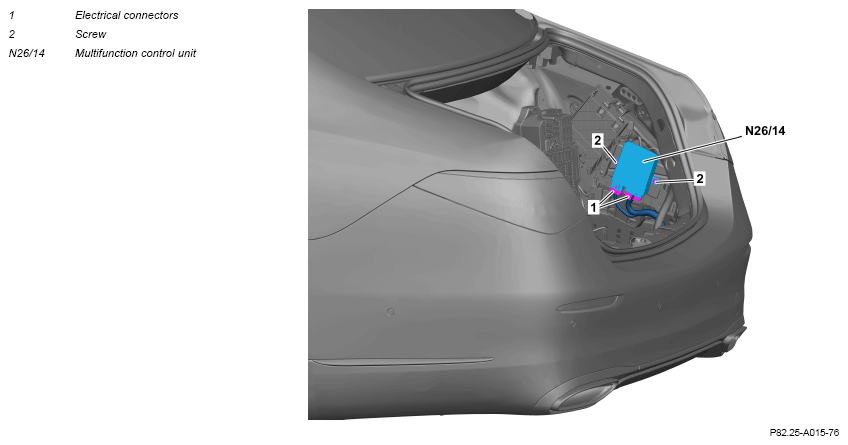

| 4 | Release and disconnect electrical connections (1). | ||
| 5 | Unscrew screws (2) and remove multifunction control unit (N26/14). | ||
| 6 | Install in the reverse order. |
