Remove/Install Roof Antenna Module - AR82.62-P-8979S
Model 223
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

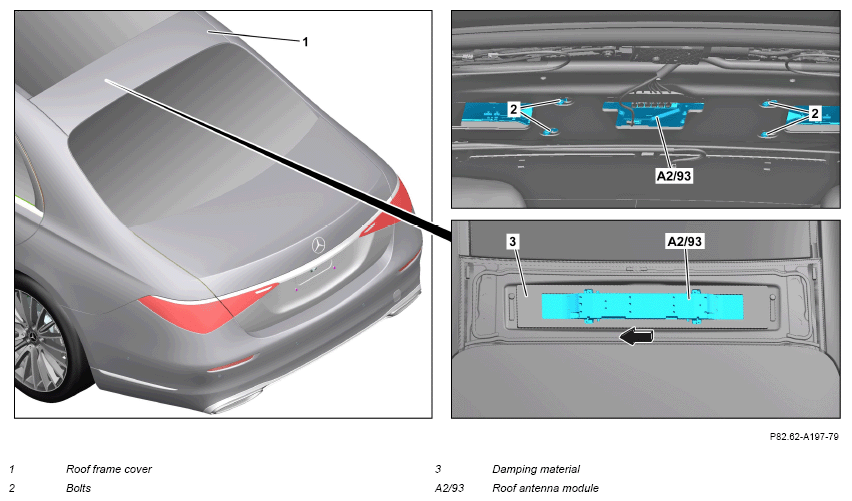

| 1 | Remove roof frame cover (1) at rear. | Model 223.0/1/9 | AR88.80-P-2010S |
| 2 | Loosen screws (2) clockwise. | ||
| 3 | Remove damping (3). | ||
| 4 | Move roof antenna module (A2/93) (see arrow) and lift out far enough that electrical connectors on roof antenna module (A2/93) are accessible. | ||
| 5 | Disconnect electrical connectors from roof antenna module (A2/93) and remove roof antenna module (A2/93). | ||
| 6 | Install in the reverse order. |
