Remove/Install Outside Speaker - AR82.25-P-1213SG
Model 223
with code Y860 (Special signaling system, disguised, Ger. signal)
with code Z07 (B7 armoring on special protection version)
Model 223
with code Y861 (Special signaling system, disguised, Yelp-Wail-Hilo,)
with code Z07 (B7 armoring on special protection version)
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z22 (Panic alarm system)

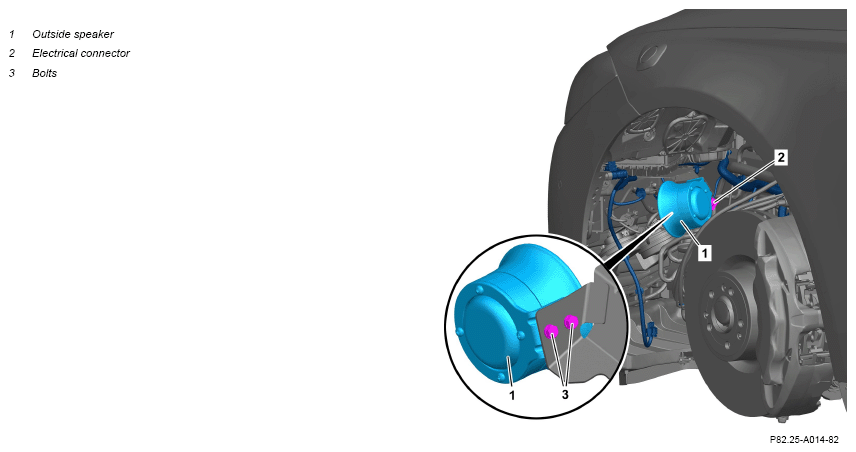

Shown on left external speaker (1)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left or right front wheel. | AR40.10-P-1102A | |
| 2 | Remove left or right fender liner front section. | AR88.10-P-1301S | |
| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Remove screw/bolts (3). | ||
| 5 | Remove left or right external speaker (1). | ||
| 6 | Install in the reverse order. |
