Remove/Install Outside Mirror Logo Projector - AR82.10-P-0002S
Model 223
with code 587 (Logo projection via mirror)
| Remove/install | |||
| 1 | Remove glass adjustment drive. | Model 223 with code 587 (Logo projection via mirror) | |
| Model 223.0/1 with code 587 (Logo projection via mirror) | AR88.70-P-9060S | ||
| 2 | Remove ambient lamp. | Model 223 with code 501 (360° camera) with code 587 (Logo projection via mirror) |
|
| AR82.10-P-0001S | |||

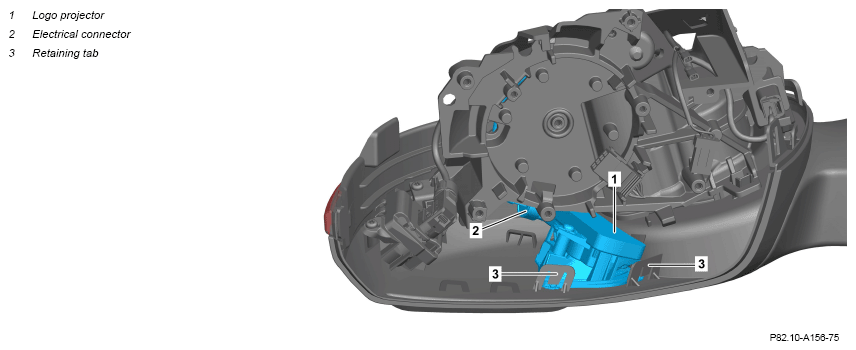

| 3 | Release retaining tabs (3) and guide out logo projector (1) until electrical connector (2) is accessible. | ||
| 4 | Disconnect electrical connector (2) and remove logo projector (1). | ||
| 5 | Install in the reverse order. |
