Remove/Install Sideview Mirror Glass Adjustment Drive - AR88.70-P-9060S
Model 223.0/1/9
Shown on left sideview mirror

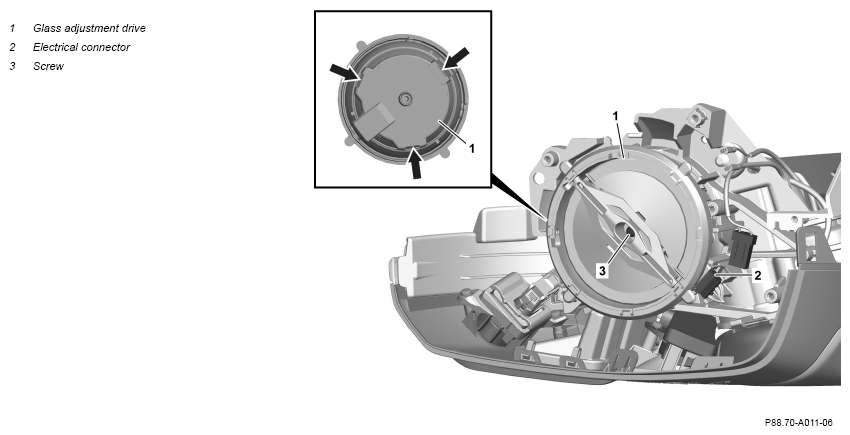

Fig 1: Sideview Mirror Glass Adjustment Drive Components Location - Model 223.0/1/9 (Left Side Shown)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove sideview mirror trim. | AR88.70-P-9040S | |
| 2 | Disconnect electrical connection (2). | ||
| 3 | Remove screw (3). | ||
| 4 | Release catch hooks (arrows) and remove glass adjustment drive (1). | ||
| 5 | Install in the reverse order |
