Remove/Install Lamp Unit On Trunk Lid - AR82.10-P-4927S
Model 223
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim on trunk lid (2). | Model 223 Model 223.0/1 |
AR88.50-P-0006S |

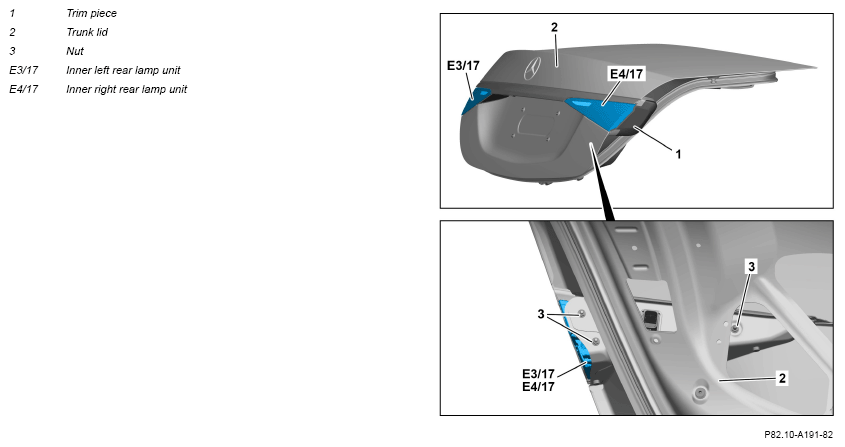

| 2 | Unclip trim piece (1). | Fig 1 | |
| 3 | Disconnect electrical connector from rear lamp unit (E3/17, E4/17). | ||
| 4 | Remove nuts (3). | ||
| 5 | Remove rear lamp unit (E3/17, E4/17) from trunk lid (2). | ||
| 6 | Install in the reverse order. |
