Remove/Install Trunk Lid Trim - AR88.50-P-0006S

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

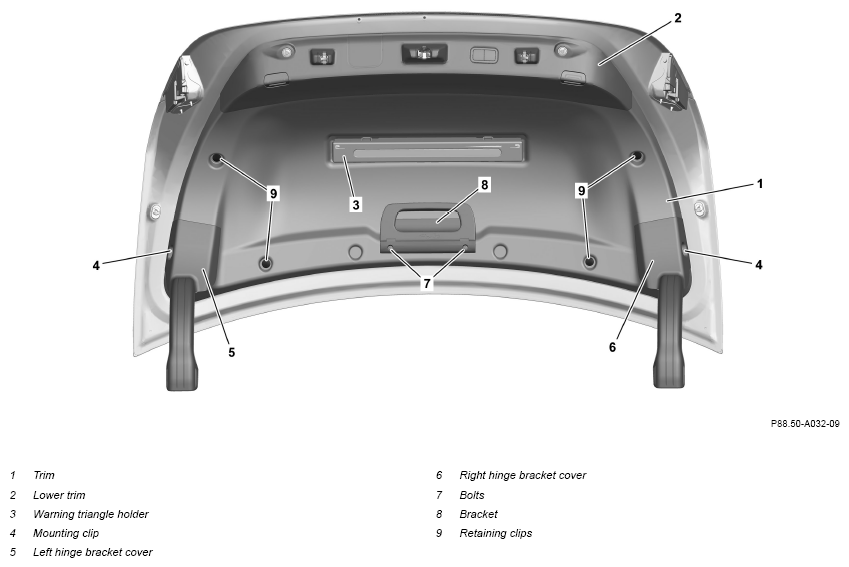

Shown on model 223.0 with code 942 (load compartment/trunk package) and with code 884 (auxiliary trunk lid lock)

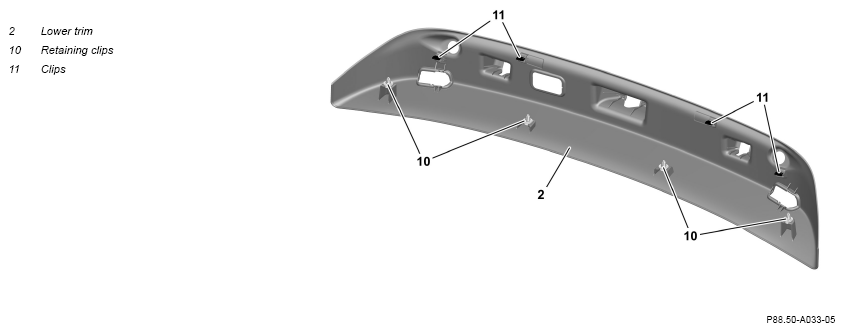

Lower trim (2) shown with code 884 (auxiliary trunk lid lock)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove warning triangle from warning triangle holder (3).
3	Remove warning triangle holder (3).	Long wedge	Fig 1
4	First, unclip lower trim (2) from the retaining clips (10) and then separate it from the trunk lid at the clips (11).	Long wedge	Fig 1
5	Remove lower trim (2) until the electrical connectors are accessible.
6	Separate electrical connectors.	The number of electrical connectors may vary depending on the equipment.
7	Remove lower trim (2).
8	Unclip retaining clips (4).	Clip remover	Fig 2
9	Remove left hinge bracket cover (5) and right hinge bracket cover (6).
10	Remove screws (7).	Model 223.0/1 with code 942 (Load compartment/trunk package)
11	Unhook and remove holder (8).	Model 223.0/1 with code 942 (Load compartment/trunk package)
12	Unclip retaining clips (9).	The number of retaining clips (9) may vary depending on the equipment installed.
		Clip remover	Fig 2
13	Unclip and remove trim (1) from the hinge brackets.
14	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
