Remove/Install Hose For Windshield Washer System For Windshield - AR82.35-P-6981S
Model 223

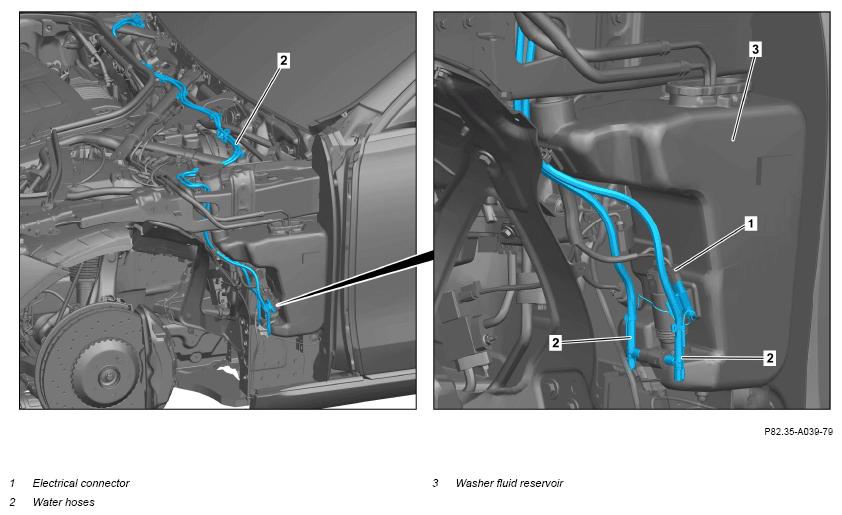

Shown with code 874 (MAGIC VISION CONTROL, heated)

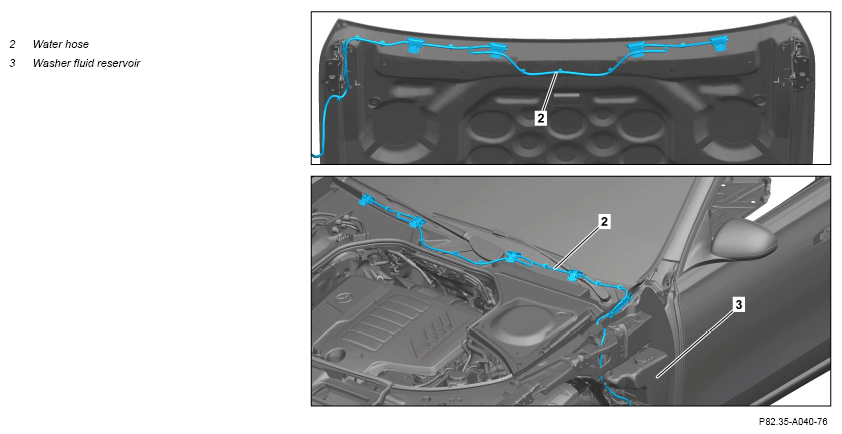

Shown except code 874 (MAGIC VISION CONTROL, heated)
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Open hood and position vertically. | ||
| 3 | Remove water drain. | Model 223 with code 874 (MAGIC VISION CONTROL, heated) |
AR82.30-P-0001S |
| 4 | Remove left front wheel. | AR40.10-P-1102A | |
| 5 | Remove rear section of front left fender liner. | Model 223 Model 223.0/1 |
AR88.10-P-1301S |
| 6 | Disconnect electrical connector (1). | Model 223 with code 874 (MAGIC VISION CONTROL, heated) |
|
| 7 | Release and disconnect water hoses (2) from windshield washer system pump. | ||
| 8 | Unclip washer fluid hoses (2) from washer fluid reservoir (3). | ||
| 9 | Remove washer fluid hoses (2) from left hinge of hood. | Model 223 except code 874 (MAGIC VISION CONTROL, heated) |
|
| 10 | Unclip spray nozzles of washer fluid hose (2) from hood and remove. | Model 223 except code 874 (MAGIC VISION CONTROL, heated) |
Fig 1 |
| 11 | Remove washer fluid hoses (2) with detachable parts. | ||
| 12 | Install in the reverse order. | ||
| Check | |||
| 13 | Check/correct fluid level of windshield washer system. | ||
| AP82.35-P-8210I | |||
| 14 | Perform function check of the windshield washer system. | ||
| AP82.35-P-8252J |
