Remove/Install Head Unit - AR82.85-P-1101S
Model 223
with code 521 (Connect 20 Mid (NTG7))
Model 223
with code 534 (Connect 20 Premium (NTG7))
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of head unit (A26/17). | When replacing head unit (A26/17). | |
| AD00.00-P-2000-06FR | |||
| 2 | Remove front center console. | AR68.20-P-2000S | |

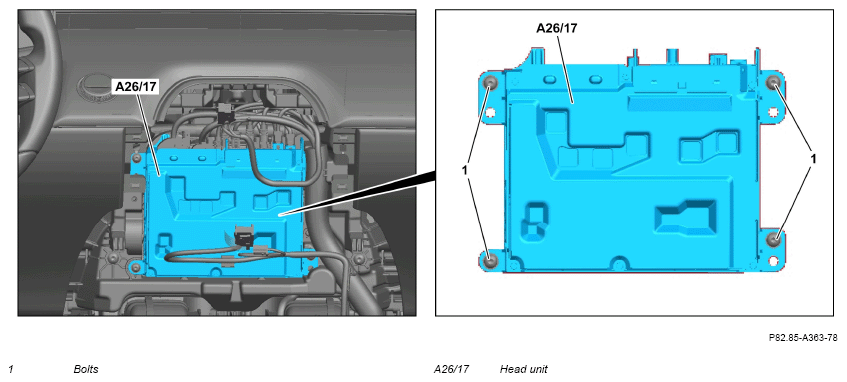

| 3 | Remove screws (1) and remove head unit (A26/17) with connected lines. | ||
| 4 | Disconnect electrical connectors from head unit (A26/17) and remove head unit (A26/17). | ||
| 5 | Install in the reverse order. |
