Remove/Install Front Headlamp Unit - AR82.10-P-4733S

Model 223

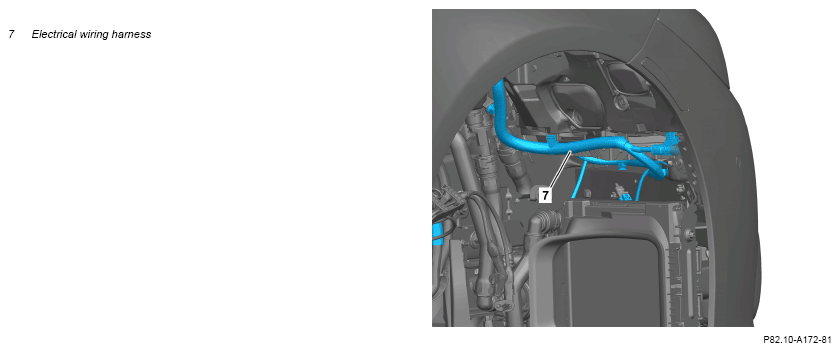

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

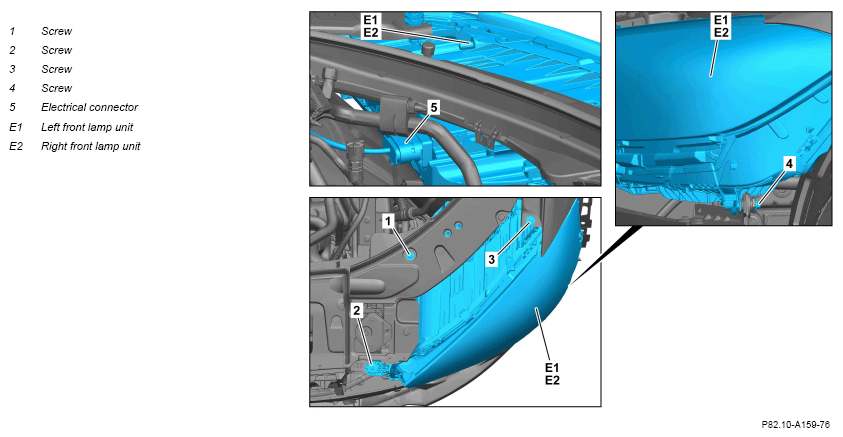

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

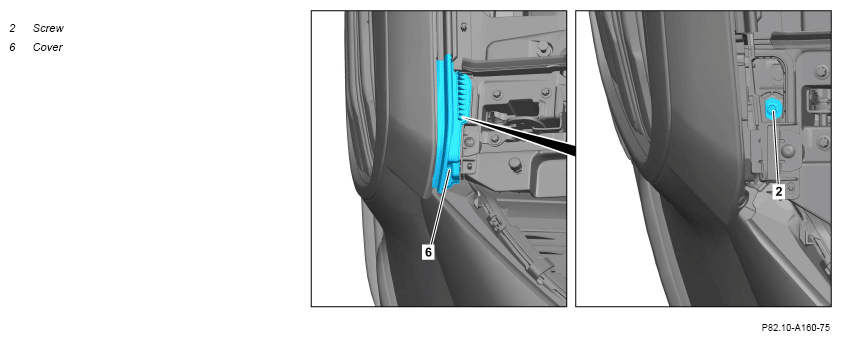

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove front bumper.	Model 223 Model 223.0/1	AR88.20-P-2000S
3	Mark screws (1, 2, 3, 4) relative to installation location and remove.
4	Mask off front lamp unit (E1, E2) in area of fender with tape.	When reusing front lamp unit (E1, E2).
5	Fold cover in front wheel arch to one side and remove electrical wiring harness (7) from front lamp unit (E1, E2).	Dismantling tool	Fig 1
6	Pull out front lamp unit (E1, E2) far enough until electrical connector (5) is accessible.
7	Release and disconnect electrical connector (5).
8	Remove front lamp unit (E1, E2).
9	Remove LED headlamp voltage converter control unit.	When replacing front lamp unit (E1, E2).	AR82.10-P-4662S
10	Remove LED headlamp range control, control unit.	When replacing front lamp unit (E1, E2).	AR82.10-P-4661S
	Install
11	Install LED headlamp range control, control unit.	When replacing front lamp unit (E1, E2).	AR82.10-P-4661S
12	Install LED headlamp voltage converter control unit.	When replacing front lamp unit (E1, E2).	AR82.10-P-4662S
13	Mask off new front lamp unit (E1, E2) in area of fender with tape.	When replacing front lamp unit (E1, E2).
14	Position front lamp unit (E1, E2) and connect electrical connector (5).
15	Insert front lamp unit (E1, E2).
16	Tighten screws (1, 2, 3, 4) lightly by hand.	Observe installation location of screws (1, 2, 3, 4). Otherwise, the front lamp unit (E1, E2) will be damaged if different length screws (1, 2, 3, 4) are used.
17	Fold cover in front wheel arch to one side and attach electrical wiring harness (7) to front lamp unit (E1, E2).
18	Install front bumper.	Model 223 Model 223.0/1 Only close maintenance flap in front fender liner and cover (6) after aligning and tightening the lamp unit (E1, E2).	AR88.20-P-2000S
19	Align front lamp unit (E1, E2) and tighten screws (3, 2, 4, 1) in specified sequence.	Model 223 Model 223.0/1	AR60.00-P-0900-01S
		Model 223.0/1 Bumper to headlamp	*BE60.00-P-1005-01PA
		Feeler gauge	Fig 2
20	Close maintenance flap in front fender liner.
21	Install cover (6).
22	Remove tape from front lamp unit (E1, E2).
23	Perform commissioning of front lamp unit (E1, E2) using vehicle diagnosis system.	When replacing front lamp unit (E1, E2).
			AD00.00-P-2000-06FR
	Check
24	Check and correct headlamp adjustment.
			AP82.10-P-8260LA

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
