Remove/Install Front Flashing Light - AR82.10-P-0170SG
Model 223
with code Y838 (Blue flashing lights behind radiator grille)
with code Z07 (B7 armoring on special protection version)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove front bumper. | AR88.20-P-2000S | |

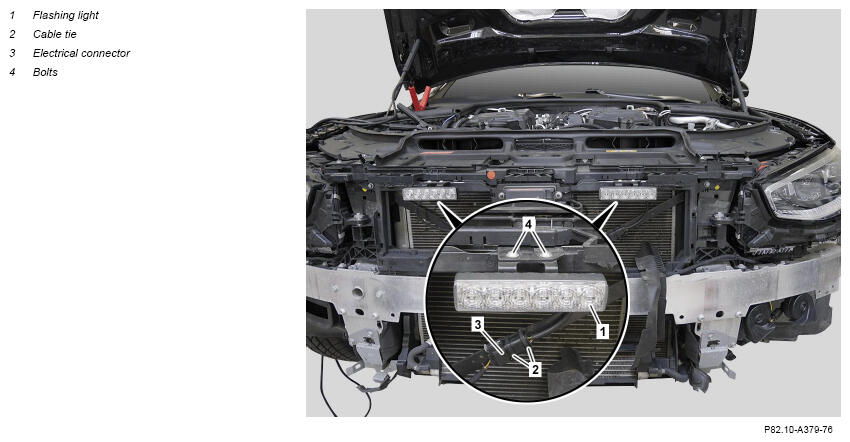

| Model 223.1 with code Y838 (Blue flashing lights behind radiator grille) with code Z07 (B7 armoring on special protection version) |
|||
| 2 | Cut through cable ties (2). | ||
| 3 | Release and disconnect electrical connection (3). | ||
| 4 | Unscrew screws (4) and remove flashing light (1). | ||
| 5 | Install in the reverse order. |
