Remove/Install Front Center Console USB Port - AR82.60-P-1041S
Model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove front stowage compartment. | AR68.20-P-0901SA | |

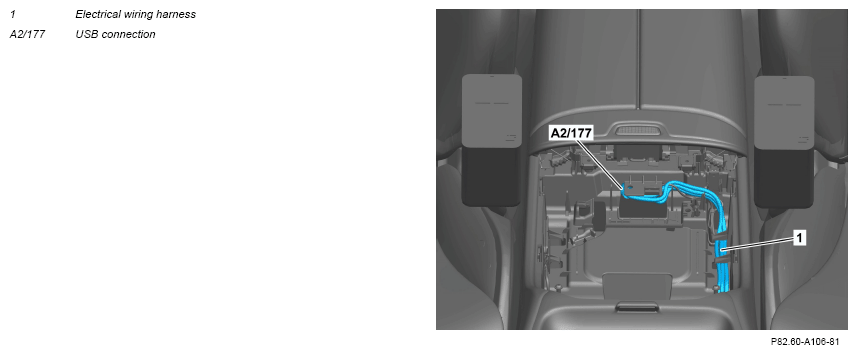

| 3 | Expose electrical wiring harness (1). | ||
| 4 | Remove USB port (A2/177). | ||
| 5 | Install in the reverse order. |
