Remove/Install Control Unit For Rear Mobile Phone Cradle In Front Center Console - AR82.70-P-0015S
Model 223
with code 899 (Front wireless telephone charging and antenna)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

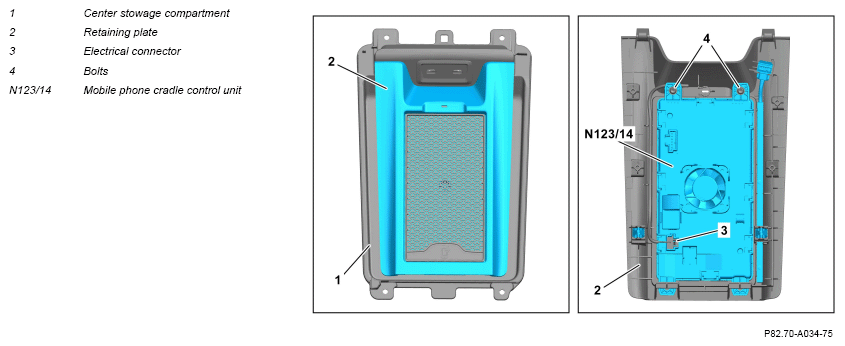

| 1 | Remove center stowage compartment (1). | AR68.10-P-1620S | |
| 2 | Extend retaining plate (2) with mobile phone cradle control unit (N123/14) out of center stowage compartment (1). | ||
| 3 | Disconnect electrical connector (3). | ||
| 4 | Remove screws/bolts (4). | ||
| 5 | Extend mobile phone cradle control unit (N123/14) and remove. | ||
| 6 | Install in the reverse order. | ||
| 7 | Commission mobile phone cradle control unit (N123/14). | When replacing the mobile phone cradle control unit (N123/14). | |
| AD00.00-P-2000-06FR |
