Remove/Install Control Unit For Front Mobile Phone Cradle In Front Center Console - AR82.70-P-0014S
Model 223
with code 899 (Front wireless telephone charging and antenna)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

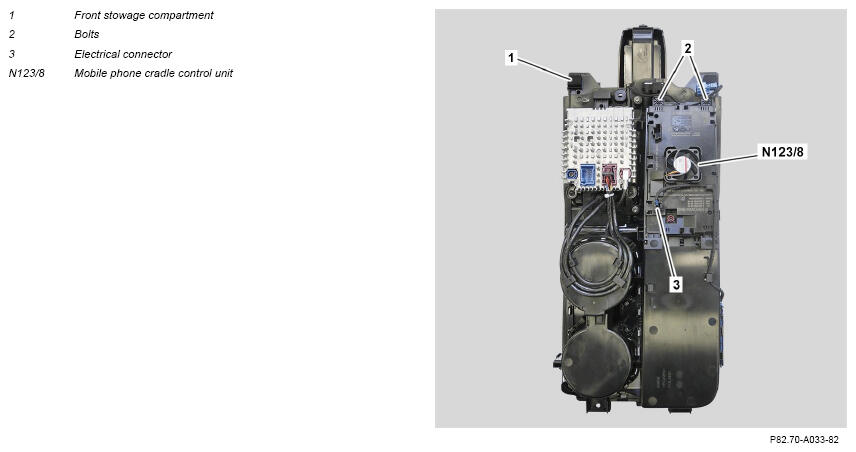

| 1 | Remove front stowage compartment (1). | AR68.20-P-0901SA | |
| 2 | Disconnect electrical connector (3). | ||
| 3 | Remove screw/bolts (2). | ||
| 4 | Extend mobile phone cradle control unit (N123/8) and remove. | ||
| 5 | Install in the reverse order. | ||
| 6 | Commission mobile phone cradle control unit (N123/8). | When replacing the mobile phone cradle control unit (N123/8). | |
| AD00.00-P-2000-06FR |
