Remove/Install Ambient Lighting Control Unit Of Rear Door - AR82.20-P-0011SA

Model 223

with code 878 (CONNECTED LIGHT ambient lighting)

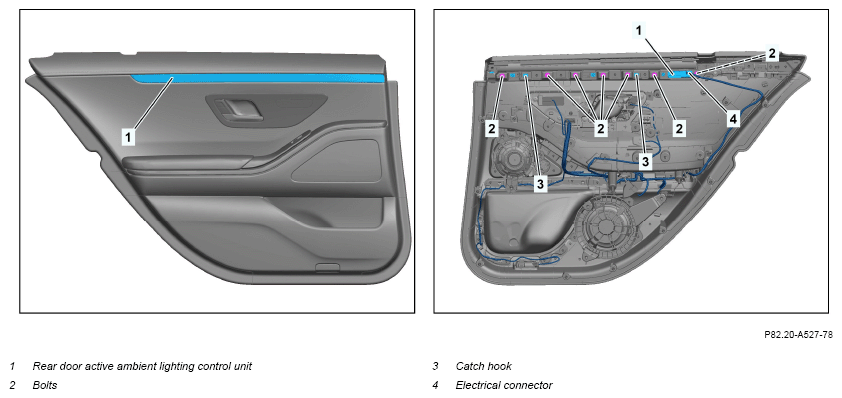

Fig 1: Ambient Lighting Control Unit Of Rear Door Components Location - Model 223 With Code 878

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove door trim.		AR72.12-P-1011S
2	Remove fleece damping from door trim.
3	Release and disconnect electrical connector (4) from rear door active ambient lighting control unit (1).
4	Remove screw/bolts (2).
5	Release catch hooks (3) and remove rear door active ambient lighting control unit (1).	Do not apply any bending forces. Otherwise, the rear door active ambient lighting control unit (1) will be damaged. Ensure that rear door active ambient lighting control unit (1) is seated correctly.
6	Install in the reverse order.
	Finishing activity
7	Commission rear door active ambient lighting control unit (1).	When replacing rear door active ambient lighting control unit (1).
			AD00.00-P-2000-06FR
