Remove/Install Front Door Inner Handle - AR72.10-P-3600MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177

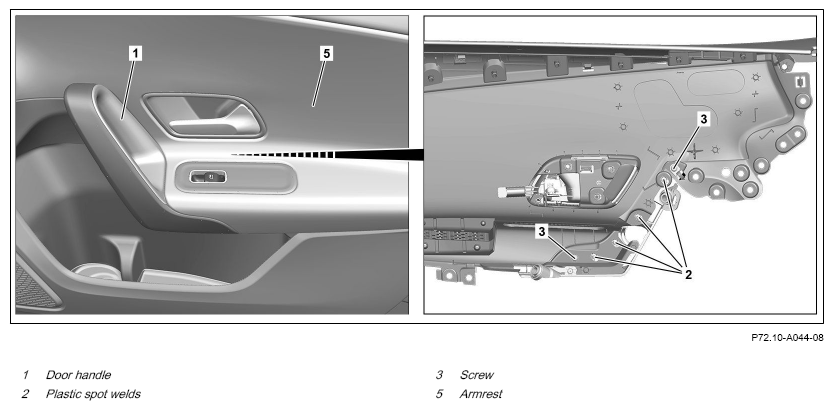

Shown on right front door
Shown on right front door
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove armrest (5). | AR72.10-P-1035MFA | |
| 2.1 | Drill plastic spot welds (2). | If the door handle (1) has been plastics welded. Observe drilling and cutting depth. Otherwise the armrest (5) or door handle (1) can be damaged by drilling through. Use spot facer, M4 according to DIN 373 with head diameter 8 mm and pin diameter 3.3 mm. Cordless drill/screwdriver If plastic flowed into the plastic spot welds (2) during welding, ↓ ream the plastic spot welds (2) with a drill bit with 3.5 mm diameter. |
|
| 2.2 | Remove screws from plastic spot welds (2). | If the door handle (1) has been screwed on. | |
| 3 | Remove door handle (1). | ||
| Install | |||

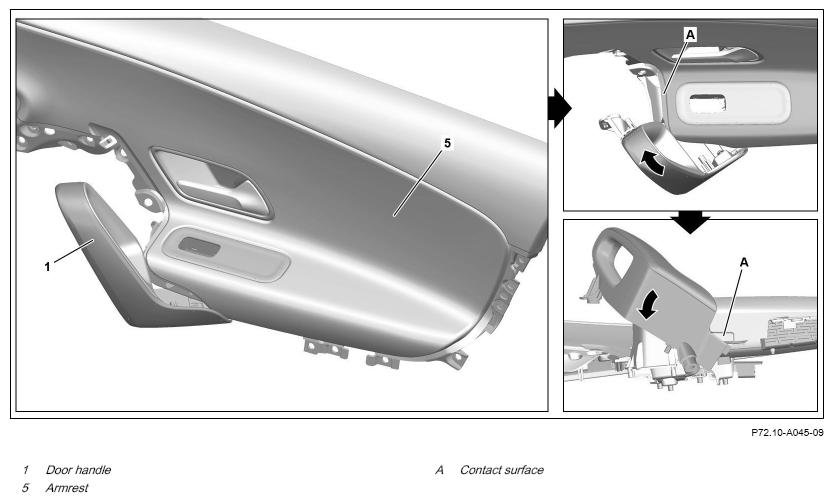

| 4 | Place door handle (1) as shown on figure and carefully position on armrest (5). | Ensure that the contact surfaces (A) are correctly covered by the door handle (1) and that the armrest material does not get moved or kinked. Otherwise, damage to the surface material will occur. |
|
| 5 | Screw the door handle (1) to the armrest (5) at the plastic spot welds (2). | ||
| 6 | Install armrest (5). | AR72.10-P-1035MFA |
