Remove/Install Rear Seat Cushion Cover - AR91.18-P-1851MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243.7, 247
Shown on model 177 on rear bench seat model 7U3
Shown on model 177 on rear bench seat model 7U3
Shown on model 177 on rear bench seat model
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear seat cushion. | AR91.12-P-1021MFA | |

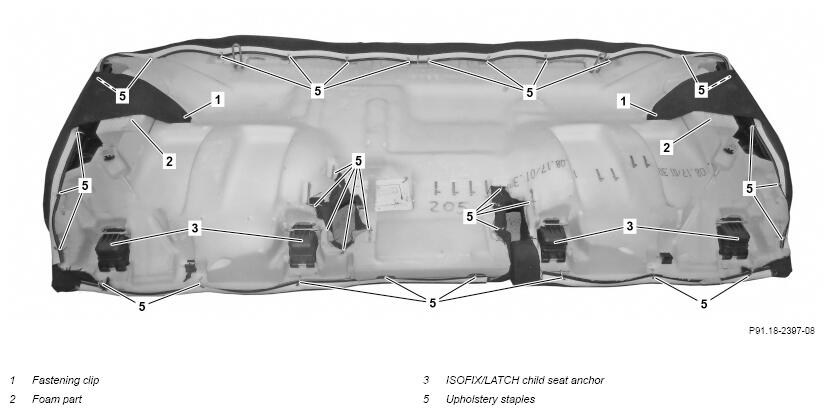

| 2 | Unclip ISOFIX/LATCH child seat anchor (3). | ||
| 3 | Turn over rear seat cushion and lay down on suitable mat. | ||
| 4 | Unclip fastening clips (1) and place shackle to one side. | ||
| 5 | Remove foam part (2). | Model 118, 177, 247 | |

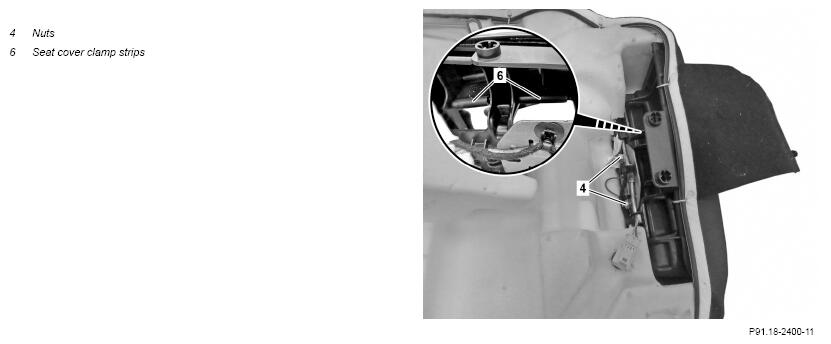

| 6.1 | Unscrew nuts (4) from side airbag and pull out side airbag until electrical connector is accessible. | Model 118, 177, 247 with code 293 (Side Airbag in rear left and right) |
AR91.60-P-0694MFA |
| 6.2 | Remove side impact airbag in rear passenger compartment. | Model 243.7 with code 293 (Side Airbag in rear left and right) |
AR91.60-P-0694MFA |
| 7 | Starting from the underside, cut upholstery staples (5) using a suitable tool and remove remaining pieces from foam part (2). | Fig 1 | |
| 8 | Detach seat cover clamp strips (6) from side airbag frame all the way round and pull seat cover out of side airbag frame. | ||

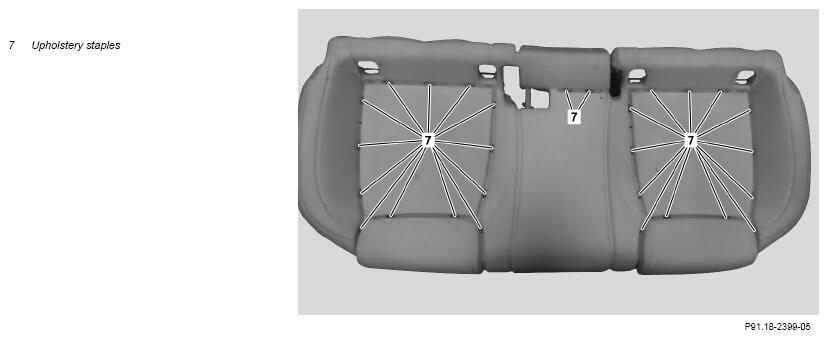

| 9 | Lift seat cover until upper upholstery staples (7) are visible. | ||
| 10 | Cut upper upholstery staples (7) one after another and remove remaining pieces from foam part (2). | Fig 1 | |
| 11 | Remove cover from rear seat cushion cover. | ||
| 12 | Install in the reverse order. |
